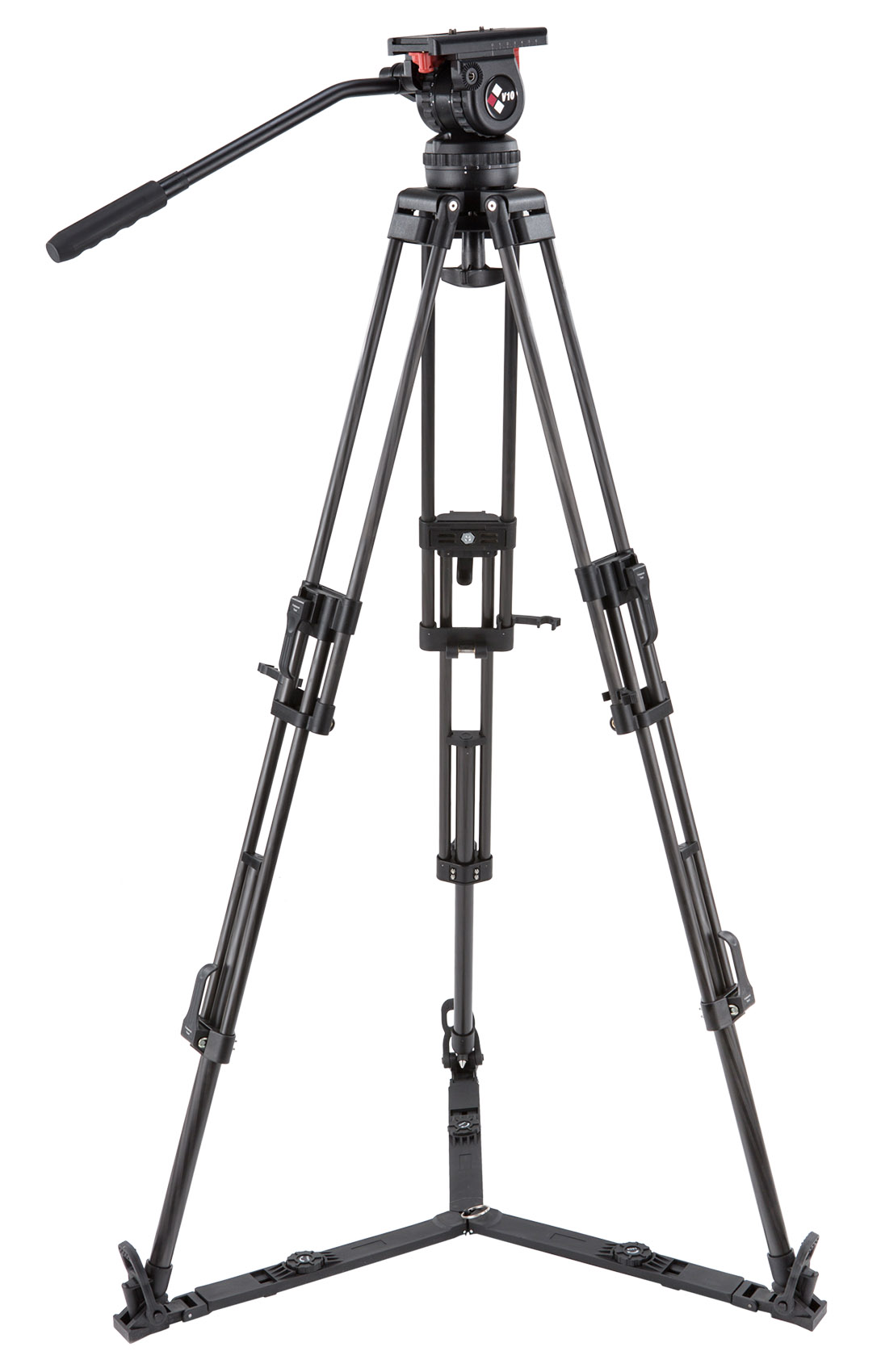

CAMGEAR V10 CF GS100 Tripod System
CAMGEAR V10 CF GS100 Tripod System ขาตั้งวิดีโอขนา bowl 100 mm วัสดุคาร์บอนไฟเบอร์ น้ำหนักเบา แข็งแรงทนทาน พร้อมหัว V10 รับน้ำหนักได้ 10 กก. มาพร้อม ground spreader และกระเป๋าผ้าอย่างดี
System Configuration
- V10 Fluid Head
- T100/CF2 Two-Stage Carbon Fiber Tripod
- PB-1 Pan Bar
- GS-2 Ground Spreader
- SB-1 Soft Bag
Specification
Payload Range 0-10 kgs/0-22.04 lbs
Weight 6.22 kgs/13.7 lbs
Maxiumum Height 1.65 m/64.6 in
Minimum Height 0.56 m/21.7 in
Transport Length 0.86 m/33.9 in
V10 Fluid Head 100 mm

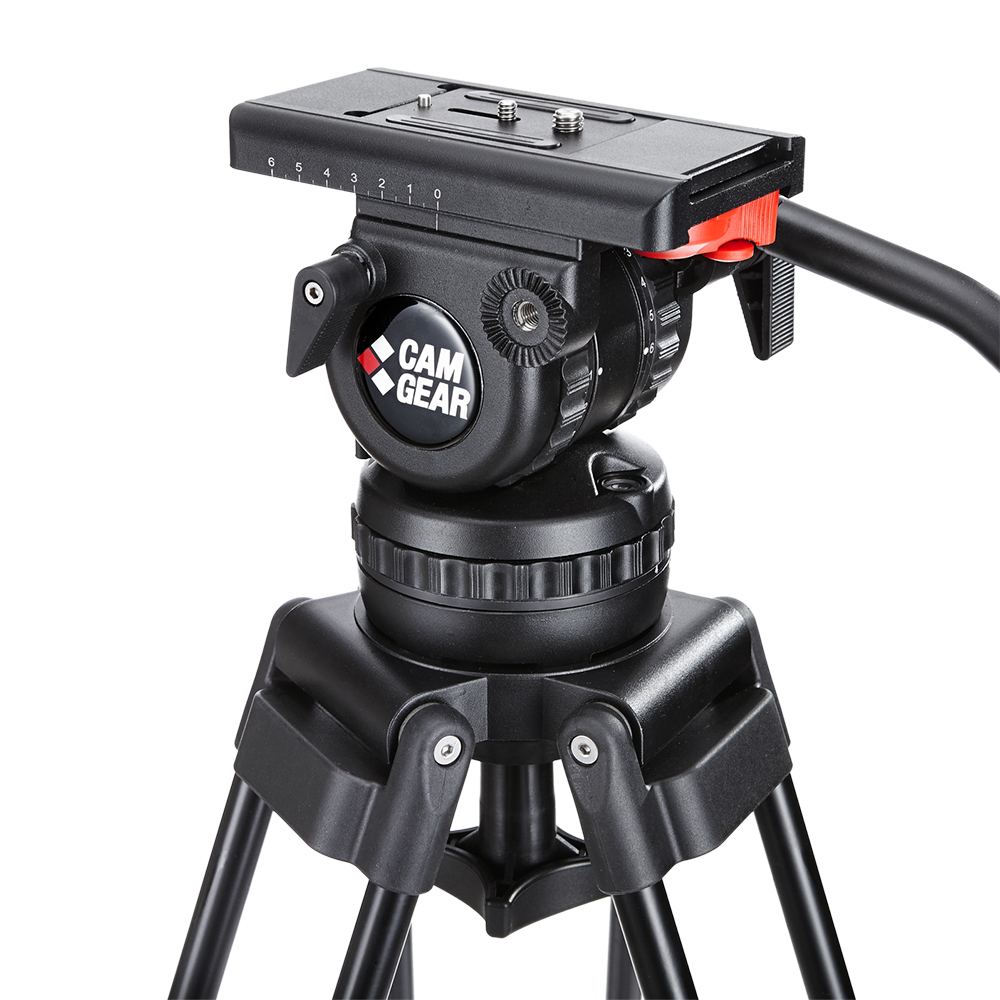

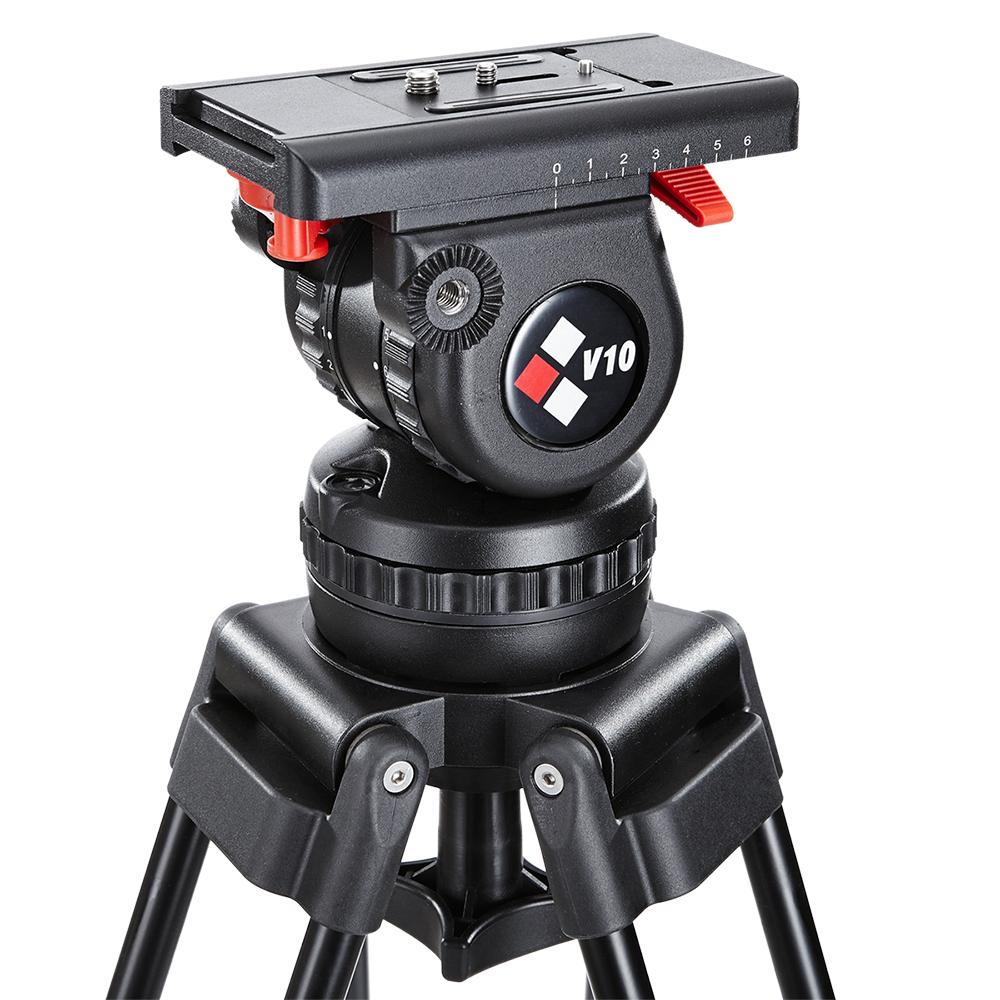

Features
Real professional drag performance, selectable 4 positions pan & tilt drag including zero postion, offer operators the silky smooth movement and precise framing.
Selectable 5 position counterbalance system including zero position for payloads between 0-10 kgs/0-22.04 lbs.
With leveling bubble.
Thanks to 0 position, the head is able to support small DSLR configuration and fully configured HDV camera and camera with light ENG configuration.
100mm ball levelling
Equipped with mini Euro plate quick release system, which enable faster setup of camera.
Specification
Model Number V10
Payload Range 0-10 kgs/0-22.04 lbs
Camera Platform Type Mini Euro Plate
Sliding Range 60 mm/23.6 in
Camera Plate 1/4" 3/8" screw & Pin
Counterbalance 6 steps (1-6)
Tilt & Pan Drag 4 steps (0+3)
Tilt Range +90/-75°
Pan Range 360°
Operating Temperature -40° to +60° C / -40 to +140° F
Leveling Bubble Yes
Weight 2.5 kgs/5.5 lbs
Bowl Diameter 100mm/3.9 in

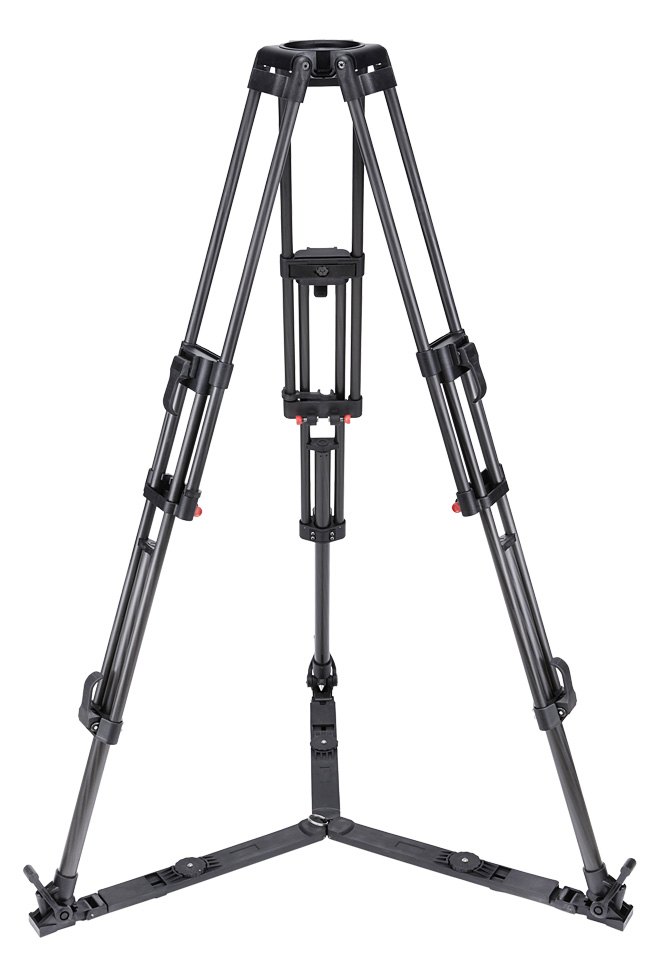

T100/CF2 Tripods 100 mm
Features
- 2-Stage 100mm bowl carbon fiber tripod.
- Lightweight, solid and robust, support upto 40 kgs/88.2 lbs.
- Double extension tripods are ideal for a much wider variety of application.
- With quick locking system and fast action transport clips.
- Come with ground spreader and able to use mid level spreader as well.
Specification
Payload 40 kgs/88.2 lbs
Bowl Diameter 100 mm/3.9 in
Construction 2 Stages
Material Carbon Fiber
Height with Ground Spreader 43-158 cm/17-62.2 in
Height with Mid-spreader 52-158 cm/20.5-62.2 in
Transport Length 70 cm/27.6 in
Weight 3.28 kgs/7.23 lbs
