Atomos Connect 4K รุ่นใหม่พร้อมสาย USB Type-C อุปกรณ์แปลงสัญญาณภาพ HDMI เป็น USB สำหรับสตรีมมิ่ง ผ่านโปรแกรม OBS, Wirecast, X-Split, Twitch, Facebook Live, Youtube Live ฯลฯ รองรับสัญญาณ HDMI 4K30 แปลงเป็น USB 1080p60 ขนาดเล็กกะทัดรัด เชื่อมต่อกับคอมพิวเตอร์ใช้งานได้ทันที



Features

• 4K HDMI to USB Conversion for Streaming
• Up to UHD 4K30 HDMI Input (8/10/12-Bit)
• Up to 1080p60 Output over USB
• Includes USB Type-A to Type-C Connector
• Accepts Switched Feed from Shogun 7
• Converts HDMI Signal to USB UVC Standard
• 2 x Hook-and-Loop Strips Included
• Android, macOS, and Windows Compatible

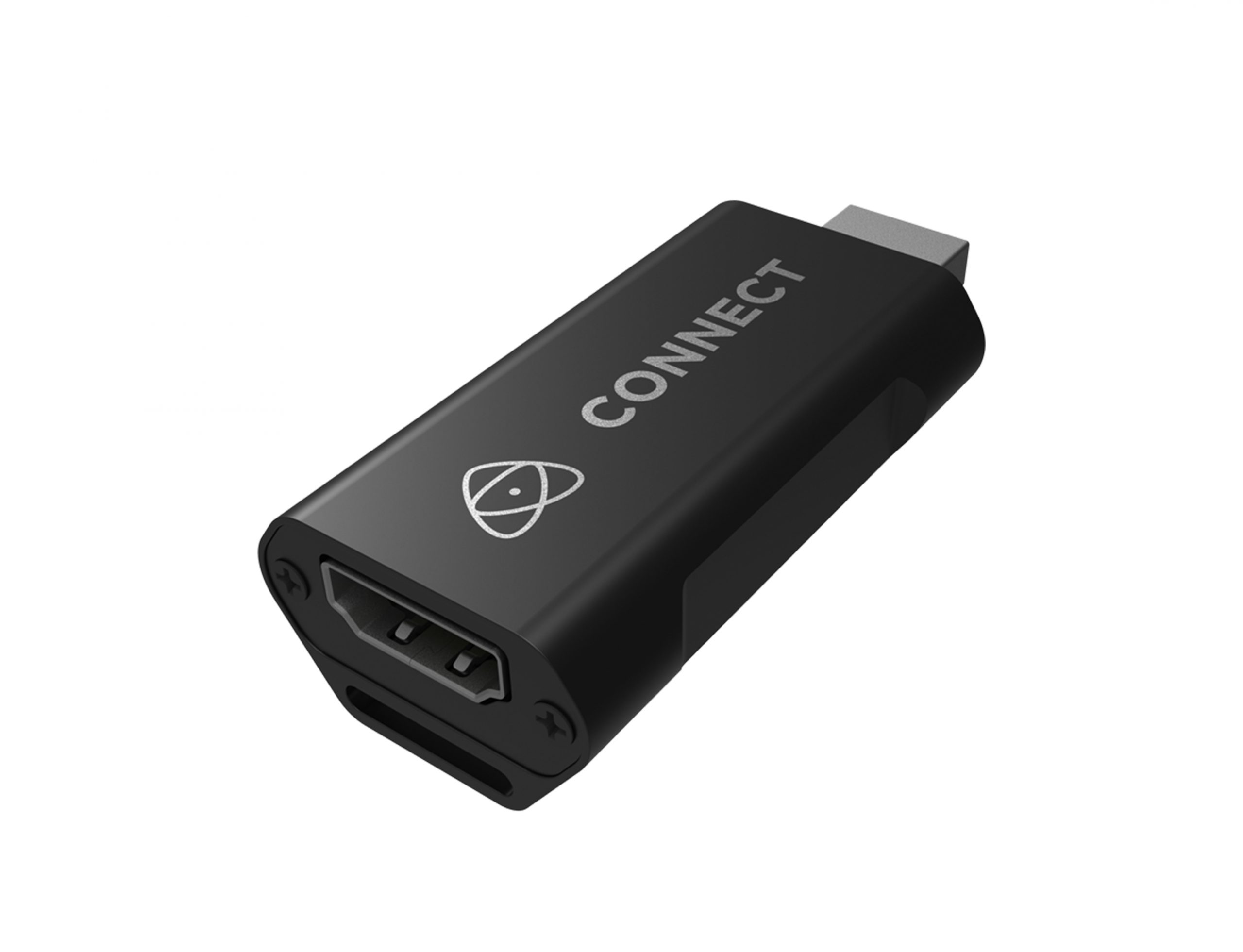

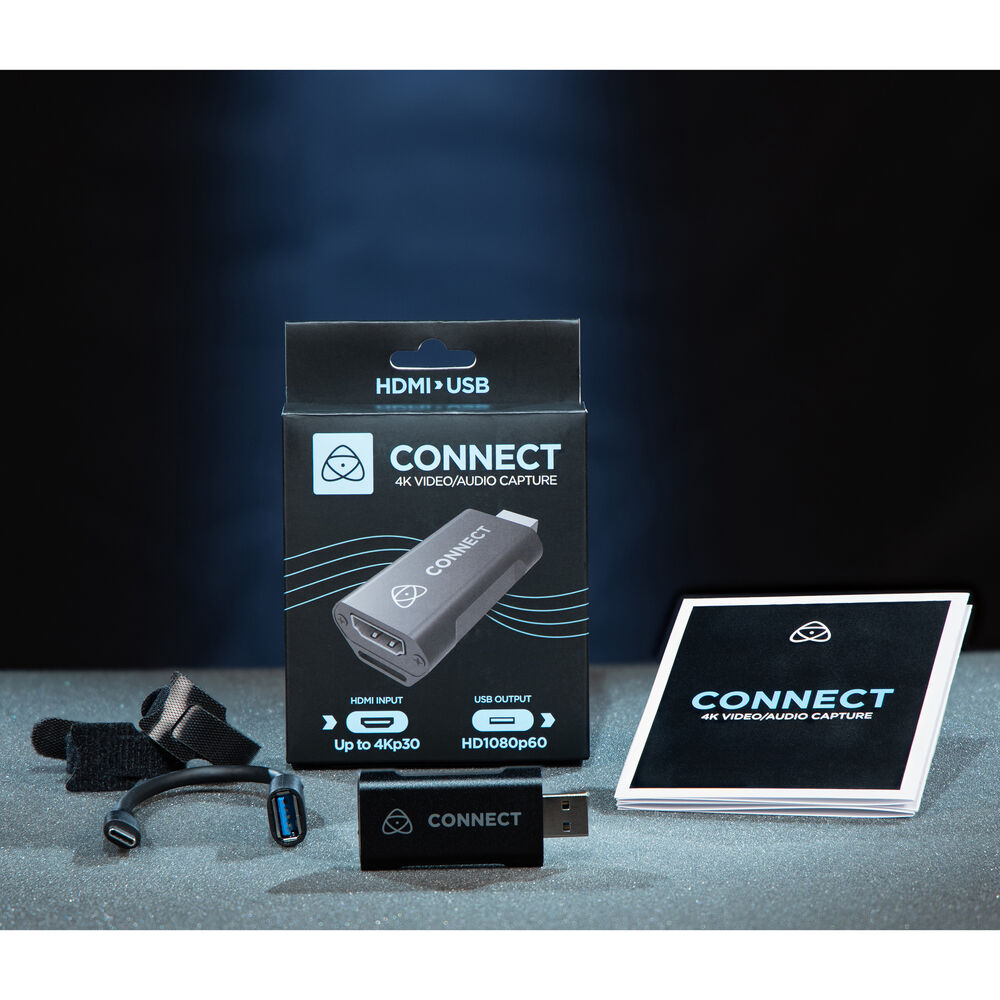

Convert your camera or switch output from HDMI to USB video for live streaming applications with the Atomos Connect 2 4K HDMI to USB Converter. The Connect 2 provides the same HDMI to USB conversion for live streaming applications and 4K30 support as the original Connect 4K, and this redesigned model includes a 7.9" long USB Type-A to Type-C connector to connect to even more computer models and devices. It also includes two hook-and-loop strips to keep the Connect 2 secured onto your devices.

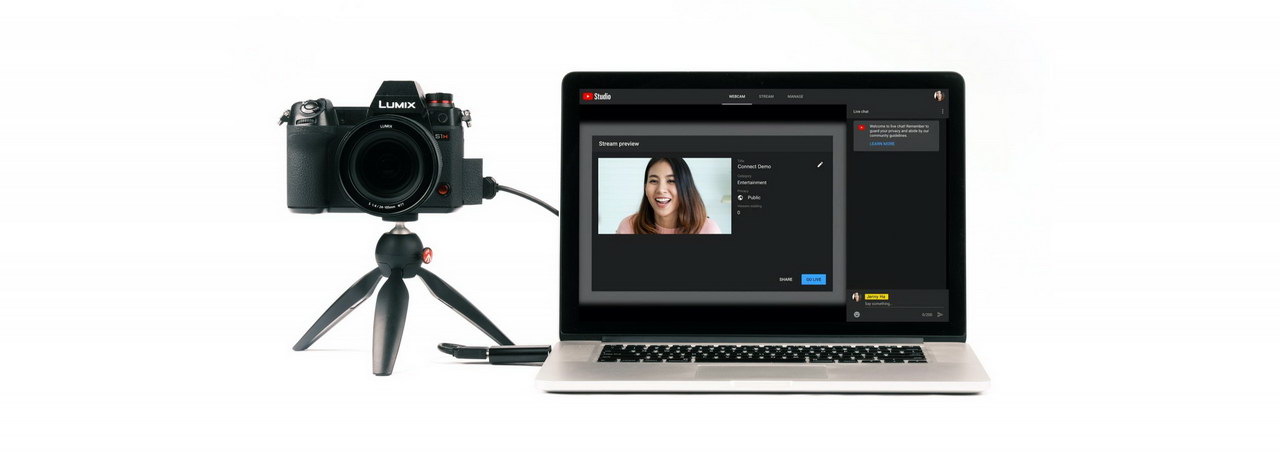

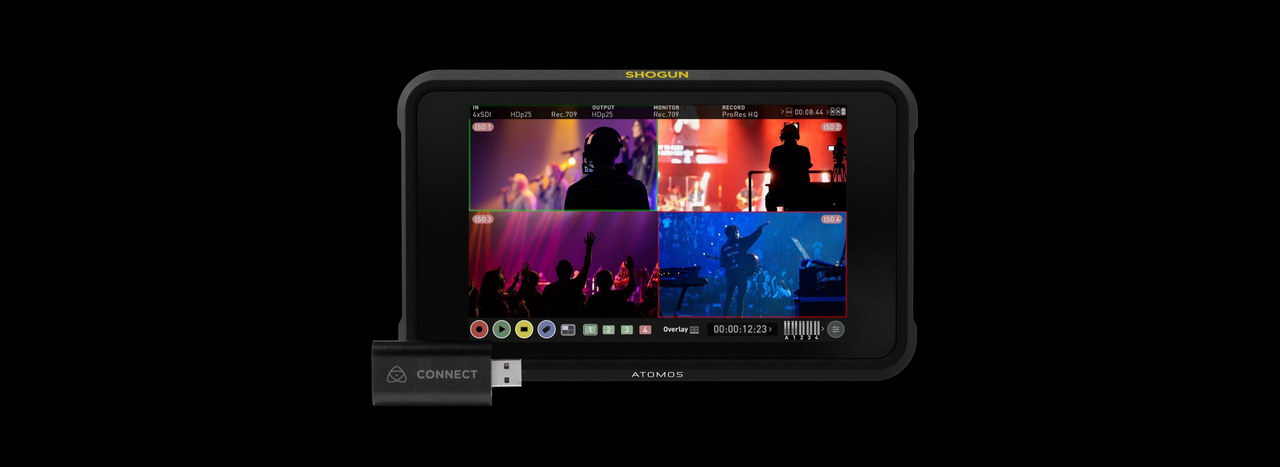

The Connect 2 maintains the same features as the Connect, allowing you to run an HDMI signal to the USB port on your macOS, Android, or Windows device for use with streaming applications such as OBS, Twitch, and YouTube Live. It accepts up to a UHD 4K30 HDMI signal and outputs up to a 1080p60 signal over USB 3.1 Gen 1 Type-A, or over USB Type-C using the included adapter cable. You can connect an HDMI camera to use as a webcam, gaming systems for live streaming gameplay, monitor signals, and signals from various other devices. When used with the Atomos Shogun 7 monitor, which is capable of recording and switching four 1080p60 signals, the Connect 2 allows you to send the switched feed to your computer for streaming.



The Connect 2 automatically converts your HDMI input to the universal USB Video Class standard (UVC) for compatibility with popular CDN platforms that supports UVC, such as Skype, MS Teams, Zoom, Twitch, YouTube, and many more. It can also be used with professional streaming applications such as OBS, StreamLabs OBS, Wirecast, and X-Split for enhanced multimedia streaming. Its compact size and streamlined redesign make it an easy-to-use device for both the studio and on location.

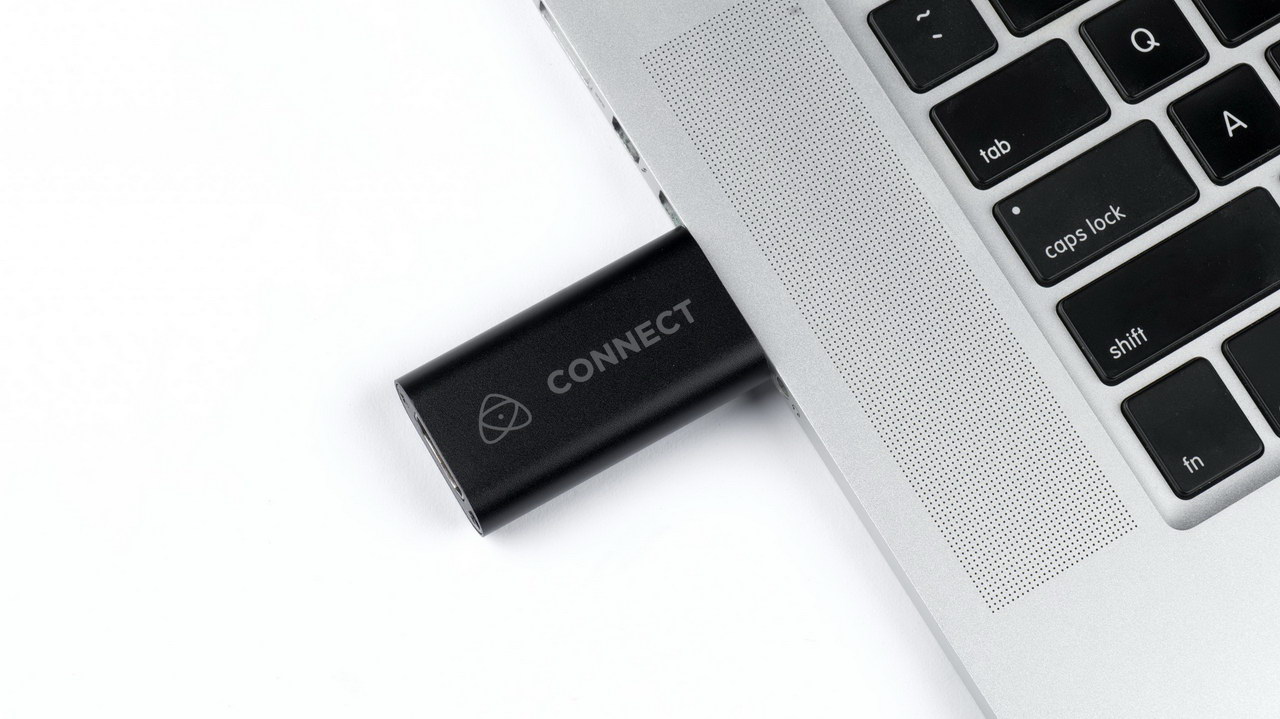

It is powered from your computer's USB Type-A or Type-C port and requires no external power supply. It supports up to 49' HDMI AWG26 certified cables.



Specifications

Host ConnectionUSB Type-A (USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0)



Input

Video Input Connectors1 x HDMI

Input Video FormatHDMI (8/10/12-Bit)

UHD 4K: 30 fps

1080p: 60 fps

720p: 60 fps

Audio Input ConnectorsNone

Embedded Audio InputHDMI



Output

Video Output Connectors1 x USB Type-A (USB Video) Male

1 x USB Type-C (USB Video) Male

Output Video FormatUSB Type-A / USB Type-C

1080p: 60 fps

Embedded Audio OutputHDMI



Standards

HDR CompatibilityNone



Hardware

OS CompatibilityWindows

macOS

Power ConsumptionDevice: 5 VDC at 0.4 A



Environmental

Operating Temperature14 to 131°F / -10 to 55°C



General

Dimensions2.5 x 1.1 x 0.5" / 64 x 28 x 13 mm

Weight0.8 oz / 21.4 g



Warranty LengthLimited 1-Year Warranty
