Aputure Amaran P60x Bi-Color LED Panel
Aputure Amaran P60x Bi-Color LED Panel ไฟ LED แบบพาเนล ปรับอุณหภูมิสีได้ 3200-6500K พร้อมซอฟท์บ็อกซ์และกริด ใช้ไฟได้ทั้ง AC Adapter และแบต NP-F ควบคุมผ่านแอพ Sidus Link มีเอฟเฟกต์ในตัว
Features
- Softbox with Grid, NP-F Battery Plate
- Variable Color Temperature: 3200-6500K
- Sidus Link Control, 4 Special FX
- AC or Battery Power, Dimming: 0-100%

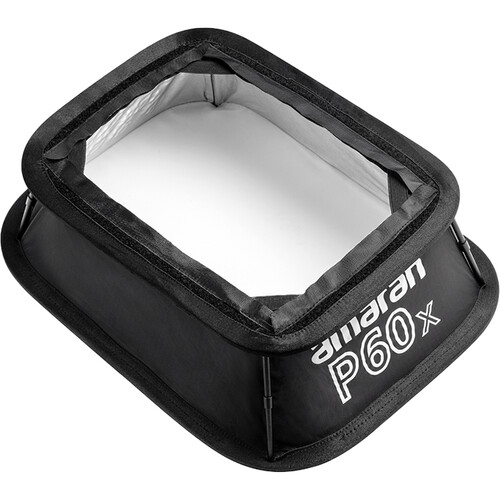

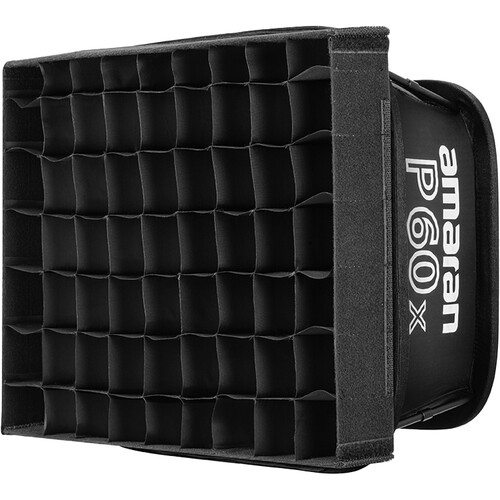

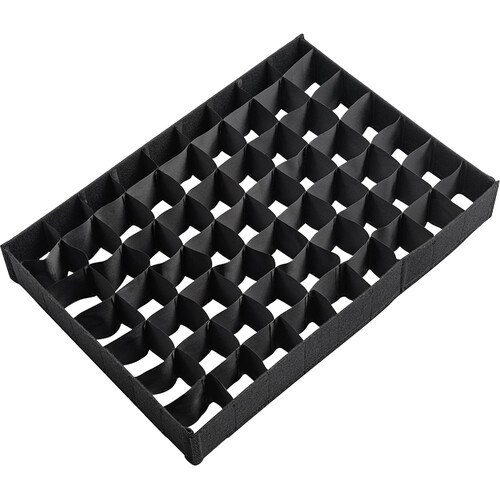

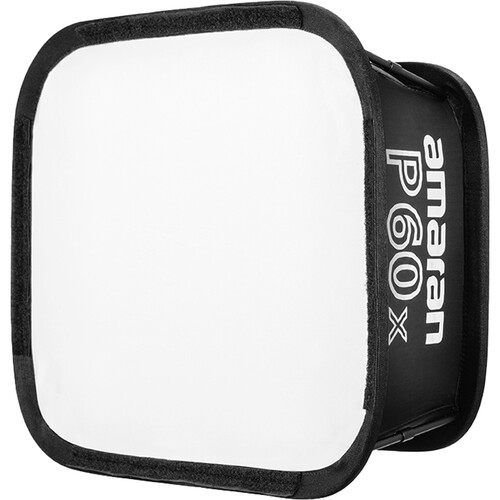

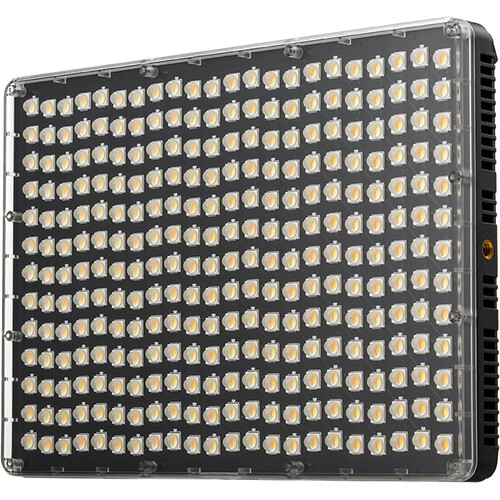

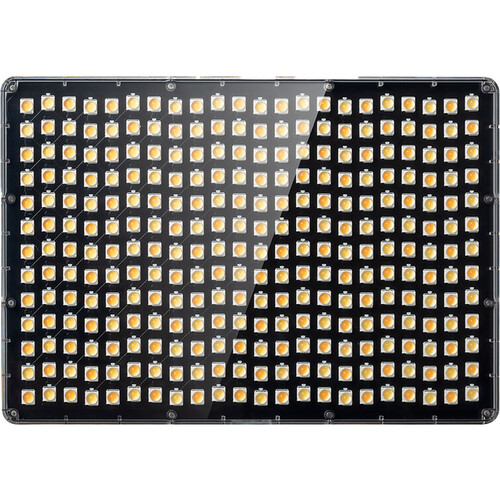

Flexibility and control are key to the design of the Amaran P60c RGBWW LED Panel. The sturdily constructed fixture offers an expansive color range of 3200 to 6500K with an impressive CRI rating of 95. The P60x is dimmable from 0 to 100% without flicker or color shift. Besides user-programmable presets, the P60x has four special effects including Paparazzi, Strobe, Fireworks, and Pulse. A softbox is included to soften the bright LEDs as is a grid to enable selective lighting.

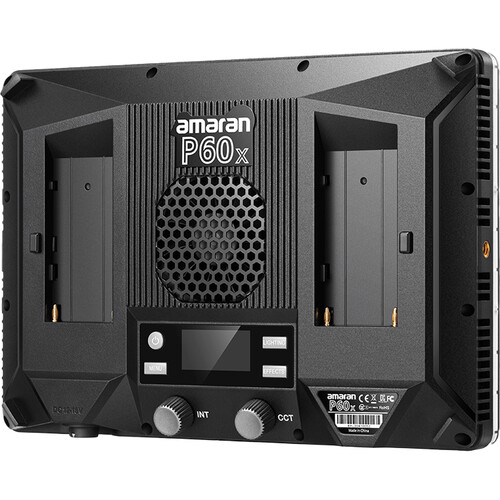

All of these adjustments can be made locally on the unit or wirelessly from up to 262' away with your smartphone and the Sidus Link app. The P60x is ready for worldwide use thanks to its 100 to 240 VAC power supply but it can also run on NP-F batteries when AC power is unavailable.
Specifications
| CCT | 3200K~6500K |
| CRI | ≥95 |
| TLCI | ≥97 |
| CQS | ≥95 |
| TM-30 RF (Average) | 93 |
| TM-30 RG (Average) | 104 |
| SSI (Tungsten) | ≥84 |
| SSI (D56) | ≥72 |
| Beam Angle (Half-Peak Angle) | 45° |
| Max Power Output | ≤60W |
| Max Power Consumption | ≤78W |
| Operating Current | 4.5A |
| Voltage (AC Power Supply) | 15V DC |
| Voltage (D-Tap Battery) | 12-16.8V DC |
| Voltage (NP-F Battery) | 6.5V-8.4V DC |
| Battery Charging (Type) | Sony NP-F Style |
| DC Input | 2-Pin DC Self-locking Waterproof |
| AC Power Cable | Self-locking IEC C13 AC Power Cable (1.5m) |
| Operating Temperature | -20°C ~ 45°C / -4°F ~ 113°F |
| Control Methods | On-board, Sidus Link App |
| Connectivity | Bluetooth 5.0 (Sidus Mesh) |
| Bluetooth Operating Range | ≥80m / 262.5ft |
| Firmware Upgradeable | Sidus Link OTA |
| Display Type | OLED |
| Cooling Method | Active Cooling |

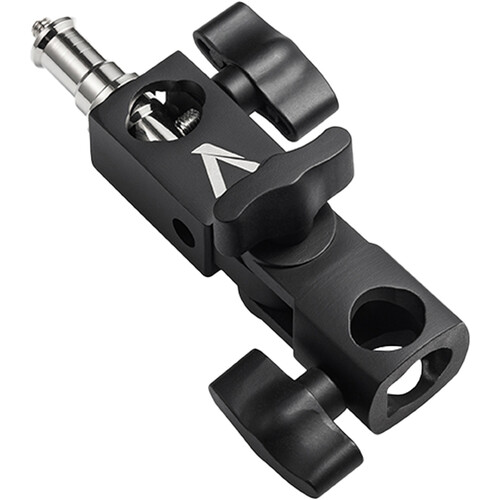

| Mounting | 1/4-20in * 3, Tilting Support Column |
| Estimated LED Lifetime (L70) | 50,000 Hours |
| Estimated Color Shift Over Lifetime (CCT) | 2% over 6,000 Hours |
| Certifications | CE, FCC, cTUVus, KC, NCC, ROHS |
DIMENSIONS
| Fixture | 25.1*17.5*3.95cm / 9.8*6.8*1.5in |
| Aperture | 25.07*17.37cm / 9.87*6.84in |
| Soft Box (Collapsed) | 20*20*2.5cm / 7.87*7.87*9.84in |
| Soft Box (Built) | 39.5*28.5*10cm / 15.55*11.22*3.94in |

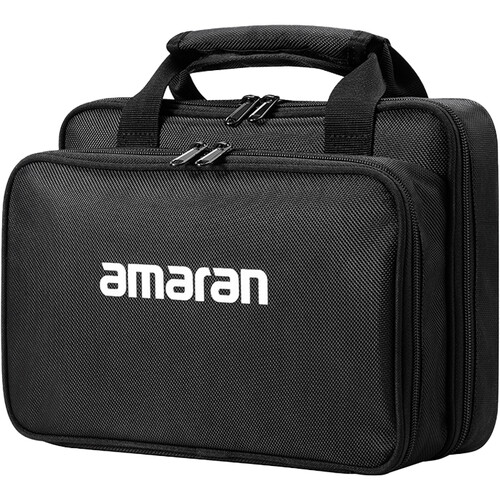

| Carrying Case | 25.7*18*9.5cm / 10.12*7.09*3.74in |
WEIGHT
| Fixture | 0.979kg / 2.15lbs |
| Soft Box | 0.17kg / .37lbs |
| Power Supply | 0.50kg / 1.1lbs |
| Mounting Bracket | 0.24kg / .52lbs |
PHOTOMETRICS
| CCT | Distance | No Softbox | With Softbox |
| .5M | 17,570 lux / 1,632 fc | 3,480 lux / 323 fc | |
| 3200K | 1M | 4,860 lux / 452 fc | 971 lux / 90 fc |
| 2M | 1,280 lux / 119 fc | 254 lux / 24 fc | |
| 3M | 539 lux / 50 fc | 116 lux / 11 fc | |
| .5M | 17,670 lux / 1,642 fc | 3,560 lux / 331 fc | |
| 4300K | 1M | 4,940 lux / 459 fc | 991 lux / 92 fc |
| 2M | 1,283 lux / 119 fc | 261 lux / 24 fc | |
| 3M | 550 lux / 51 fc | 119 lux / 11 fc | |
| .5M | 18,120 lux / 1,683 fc | 3,660 lux / 340 fc | |
| 5600K | 1M | 5,070 lux / 471 fc | 1,023 lux / 95 fc |
| 2M | 1,328 lux / 123 fc | 268 lux / 25 fc | |
| 3M | 572 lux / 53 fc | 123 lux / 11 fc | |
| .5M | 18,410 lux / 1,710 fc | 3,730 lux / 347 fc | |
| 6500K | 1M | 5,180 lux / 481 fc | 1,041 lux / 97 fc |
| 2M | 1,354 lux / 126 fc | 273 lux / 25 fc | |
| 3M | 585 lux / 54 fc | 126 lux / 12 fc |
