Sennheiser ew 112P G4 Camera-Mount Wireless Microphone System with ME 2-II Lavalier Mic

ชุดไมค์ไวเลสประกอบด้วยตัวรับ, ตัวส่ง, ไมค์ติดเสื้อรุ่นใหม่ ME 2-II, ที่ติดฮอทชูกล้อง พร้อมสายต่อเข้ากล้องแบบ 3.5mm และ XLR ฟังก์ชั่นสแกนหาคลื่นความถี่อัตโนมัติ 20 แบงค์ 12 แชนแนล ฟังก์ชั่นล็อกอัตโนมัติป้องกันการกดปุ่ม ฟรีแถมเคสกันกระแทก

• EK 100 G4 Camera-Mountable Receiver
• SK 100 G4 Bodypack Transmitter
• ME 2-II Omnidirectional Clip-On Lav Mic
• 1680 Tunable Frequencies Across 42 MHz
• Auto Frequency Scan Finds Open Bands
• 3-Level Squelch to Block Interference
• 20 Banks with 12 Channel Presets Each
• Compander for Clearer Sound
• Auto-Lock Prevents Accidental Adjustment

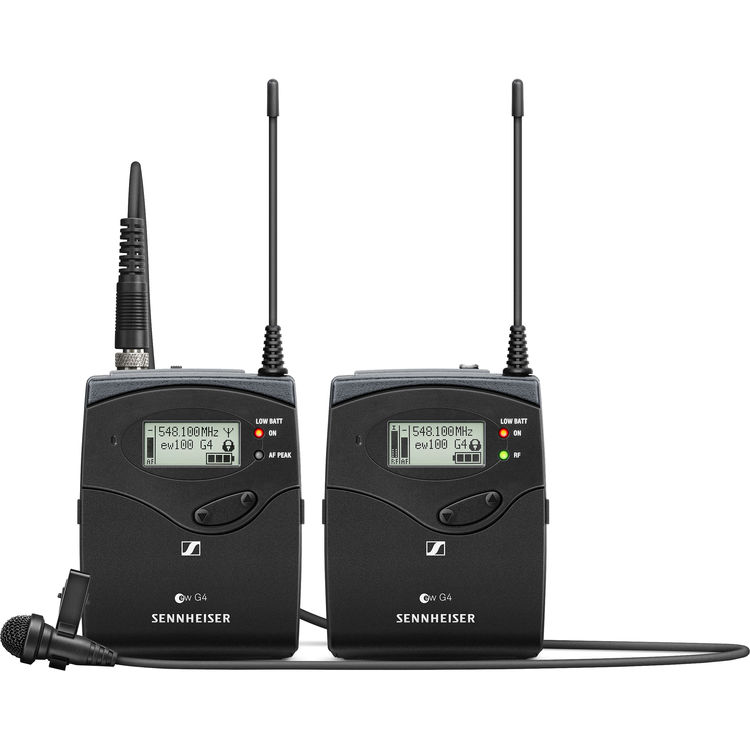

The ew 112P G4 Camera Mount Wireless Microphone System from Sennheiser is the latest addition to Sennheiser's evolution family of wireless microphones and is fully compatible with all previous series. This package includes the EK 100 G4 camera mount receiver, SK 100 G4 bodypack transmitter, and ME 2-II lavalier microphone. Accessories include a CA 2 camera mount, 1/8 to 1/8" cable, and a 1/8" to XLR cable. It can be used to capture audio for live sound, broadcast and film, business, and educational applications.

The SK 100 G4 bodypack transmitter and the EK 100 G4 receiver sport an updated high-contrast LCD display and a dedicated escape button. They synchronize channel and frequency at the touch of a button. In addition, an optional rechargeable battery pack allows you to charge batteries while they remain inside the units. The CA 2 shoe-mount adapter provides easy installation onto a camera shoe.

Features

• Sturdy metal housing
• 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
• Enhanced frequency bank system with up to 12 compatible frequencies
• Adaptive-diversity for high-quality reception
• Pilot tone squelch for eliminating RF interference when transmitter is turned off
• Automatic frequency scan feature searches for available frequencies
• Enhanced AF frequency range
• Wireless synchronization of transmitters via infrared interface
• User-friendly menu operation with more control options
• Auto-Lock function avoids accidental changing of settings
• HDX compander for crystal-clear sound
• Operates on 2 standard AA batteries
• Receiver features battery indication in 4 steps
• Contacts for recharging BA 2015 accupack directly in the receiver
• Wide range of accessories adapts the system to any requirement



Specifications

EK 100 G4 Wireless Camera-Mount Receiver D: (794 to 806 MHz)

ModulationWideband: FM

Frequency BandD: (794 to 806 MHz)

Receiving Frequency: Maximum 1680 receiving frequencies, adjustable in 25 kHz steps

20 frequency banks, each with up to 16 factory-preset channels, no intermodulation

1 frequency bank with up to 12 programmable channels

Switching Bandwidth: Up to 42 MHz

Nominal/Peak Deviation: ±24 kHz / ±48 kHz

Principle of Operation: Adaptive diversity

Sensitivity: < 1.6 μV for 52 dBA eff S/N (with HDX, peak deviation)

Adjacent Channel Selectivity: ≥ 65 dB

Intermodulation Attenuation: Typically ≥ 65 dB

Blocking: ≥ 70 dB

Squelch: Low: 5 dBµV

Middle: 15 dBµV

High: 25 dBμV

Pilot Tone Squelch: Can be switched off

Antenna Inputs: 2 x BNC sockets

Compander: Sennheiser HDX

Signal to Noise Ratio: ≥ 110 dBA (1 mV, peak deviation)

Total Harmonic Distortion:  (THD)≤ 0.9%

Maximum AF Output Voltage: 1/8" /3.5 mm Jack: +12 dBu (mono, unbalanced)

Output Level Range: 42 dB, adjustable in steps of 6 dB

Temperature Range: 14 to 131°F (-10 to 55°C)

Power Supply: 2 x AA 1.5 V batteries, or BA 2015 accupack

Nominal Voltage: 3 V battery / 2.4 V rechargeable battery

Current Consumption: Nominal Voltage: Typical 180 mA

With Receiver Switched Off: ≤ 25 µA

Operating Time: Typically 8 hours

Dimensions (L x W x H): 3.2 x 2.5 x 0.9" / 82 x 64 x 24 mm

Weight: 5.6 oz / 160 g

Packaging Info

Box Dimensions (LxWxH): 13.9 x 3.2 x 2.9"



SK 100 G4 Wireless Bodypack Transmitter D: (794 to 806 MHz)

ModulationWideband:  FM

Frequency Range: D: (794 to 806 MHz)

Transmission Frequencies: Maximum 1680 receiving frequencies, adjustable in 25 kHz steps

20 frequency banks, each with up to 12 factory-preset channels, no intermodulation

1 frequency bank with up to 12 programmable channels

Switching Bandwidth: Up to 42 MHz

Nominal/Peak Deviation: ±24 kHz / ±48 kHz

Frequency Stability: ≤ ±15 ppm

RF Output Power: Maximum 30 mW at 50 Ohms

Pilot Tone Squelch: Can be switched off

Compander: Sennheiser HDX

AF Frequency Response: Mic: 80 Hz to 18 kHz

Line: 25 Hz to 18 kHz

Signal to Noise Ratio: ≥ 110 dBA (1 mV, peak deviation)

Total Harmonic Distortion (THD): ≤ 0.9%

Maximum Input Voltage: Microphone/Line: 3 V eff

Input Impedance: Microphone/Line: 40 kOhms, unbalanced / 1 MOhms

Input Capacitance: Switchable

Input Sensitivity Range: 60 dB, adjustable in 3 dB steps

Temperature Range: 14 to 131°F (-10 to 55°C)

Power Supply: 2 x AA batteries, 1.5 V or BA 2015 accupack

Nominal Voltage: 3 V battery / 2.4 V rechargeable battery

Current Consumption: At Nominal Voltage: Approximately 180 mA

With Transmitter Switched Off: ≤ 25 µA

Operating Time: Typically 8 hours

Dimensions (W x L x H): 3.2 x 2.5 x 0.6" (82 x 64 x 24 mm)

Weight: 5.6 oz (160 g)

Packaging Info

Box Dimensions (LxWxH):13.8 x 3.2 x 3.0"

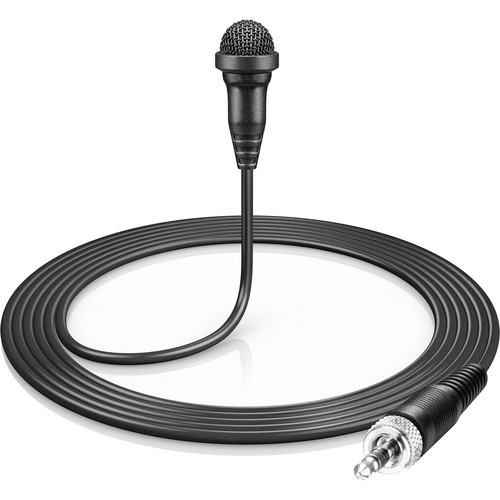

ME 2-II Omnidirectional Lavalier Microphone (Black)

Compatibility: AVX, evolution wireless D1, SpeechLine Digital Wireless, XS Wireless 1, XS Wireless 2

Transducer: Permanent polarized condenser

Polar Pattern: Omnidirectional

Sensitivity: 20 mV/Pa

EIN: 36 dB

Maximum SPL: 130 dB

Operating Voltage: 7.5 V

Frequency Response: 50 Hz to 18 kHz

Connector: Threaded EW 3.5 mm connector

Windscreen: Integrated, fixed

RF: 100% compliant RF compatibility

Cable Length: 5.2' / 1.6 m



Diameter: 0.4" / 10.5 mm

Packaging Info

Box Dimensions (LxWxH):4.5 x 3.5 x 0.5"
