SmallHD FOCUS 5" On-Camera Monitor
SmallHD FOCUS 5" On-Camera Monitor จอมอนิเตอร์ LCD IPS ขนาด 5 นิ้ว ความละเอียด 1280 x 720 พิกเซล 10 บิท ให้ความคมชัดสีสันสมจริง ใช้งานง่ายด้วยระบบสัมผัส ช่องเสียบ SD Card สำหรับบันทึกพรีเซ็ทและ LUT รองรับแบตเตอรี่ L-Series ช่องเสียบหูฟังขนาด 3.5 มม. ช่องจ่ายไฟไปยังกล้อง พร้อม Tilt Arm สำหรับปรับมุมก้มเงย, สาย micro-HDMI, ฮู้ดบังแสง และแผ่นกันรอย
Features
- 5" 1280 x 720 Touchscreen Display
- Micro-HDMI Input
- 800 cd/m² 10-Bit IPS LCD Panel
- SD Card for Presets and Loading LUTs
- L-Series Battery Mount
- 3.5mm Headphone Output
- Camera Power Output
- Swipe OS
- Includes FOCUS Tilt Arm
Specifications
| Panel Type | IPS-Type LCD |
| Display Size | 5.0" / 12.7 cm |
| Screen Resolution | 1280 x 720 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 160° |
| Touchscreen | Yes |
| Maximum Brightness | 800 cd/m2 |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| Pixels Per Inch (ppi) | 294 ppi |
| Image Controls | Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Waveform, Zebra, Vectorscope |
| Video | 1 x HDMI Type D Input |
| Embedded Audio | HDMI |
| Audio | 1 x 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Other I/O | 1 x USB 2.0 (Micro-USB) |
| Card Slot | 1 x SD |
| Video Format | HDMI (8/10/12-Bit) UHD 4K: 30/29.97/23.98 1080p: 60/59.94/50/30/25/24/23.98 1080i: 120/119.88/100/60/59.94/50 720p: 120/119.88/100/60/59.94/50 576p: 200/100/50 480p: 240/239.76/120/119.88/100/60/59.94 480i: 240/239.76/120/119.88/60/59.94 576i: 200/100/50 |
| DC Input Power | 6 to 8.4 VDC |
| Battery Type | 1 x L-Series |
| Dimensions (W x H x D) | 0.75 x 3.3 x 5.25" / 1.91 x 8.38 x 13.34 cm |
| Weight | 6.1 oz / 173 g |

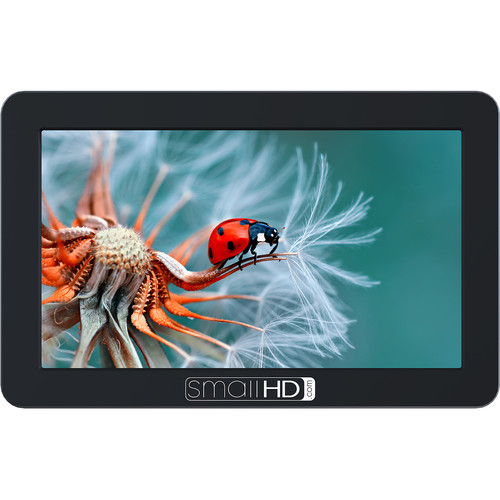

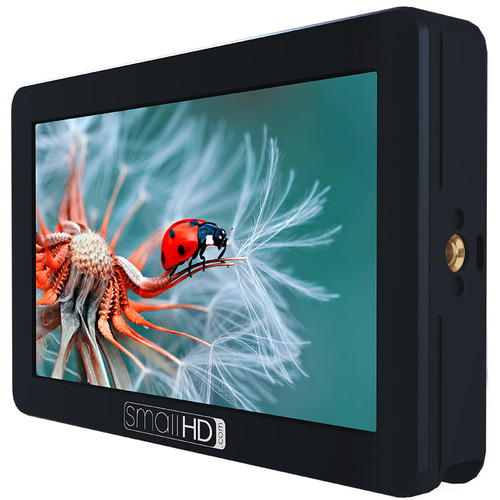

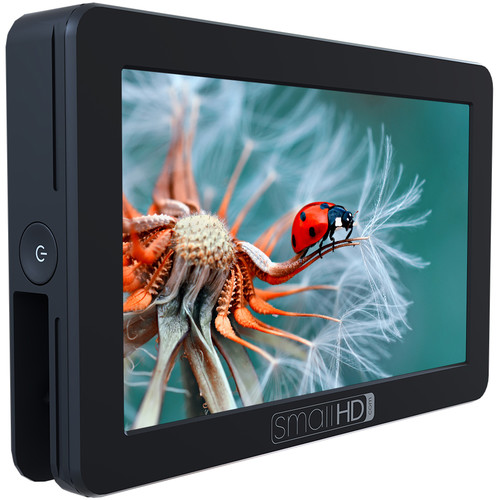

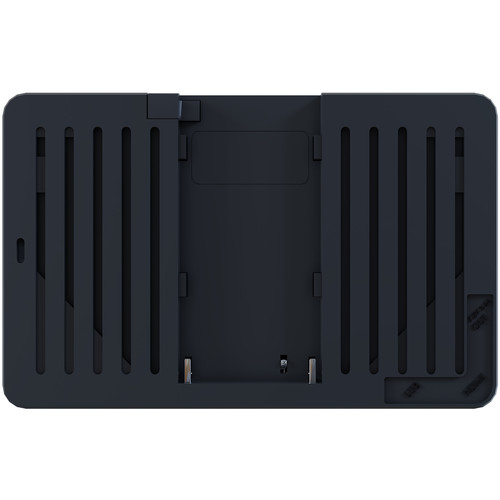

Designed to add professional monitoring tools to DSLR and mirrorless cameras, the SmallHD FOCUS 5" On-Camera Monitor is bright, lightweight, and features a sharp display. The 800 cd/m² bright touchscreen 1280 x 720 IPS LCD panel can be viewed in daylight, and is driven by a single micro-HDMI input. Using the intuitive Swipe OS, you can turn on various monitoring tools like waveform, false color, and vectorscope, as well as focusing aids like peaking, with a tap. At the rear of the monitor, a single NP-F battery bay provides power to the monitor, and a power output can also power your camera with a separately available DC coupler. A stand with tilt adjustment is included with the monitor for mounting atop your camera's accessory shoe or on a 1/4"-20 screw.
Swipe OS
Built on SmallHD's intuitive PageBuilder OS, Swipe OS offers the same intuitiveness of a graphical user interface (GUI), though with touchscreen navigation. Rather than have confusing menus, this GUI allows you to selectively apply monitoring tools such as waveform, vectorscope, and focusing aids to up to 12 different "pages". Using the touchscreen, swipe through different preset pages and toggle monitoring tools on or off with ease.
Camera Setup Integration
This monitor complements smaller cameras by providing power output and a headphone jack. The power output lets you power your camera directly from the NP-F battery mounted on the monitor, increasing run-times over the standard batteries of many mirrorless cameras. If your camera doesn't have a headphone jack, the FOCUS de-embeds the audio from the HDMI stream for real-time feedback of audio.
Convenient Mounting

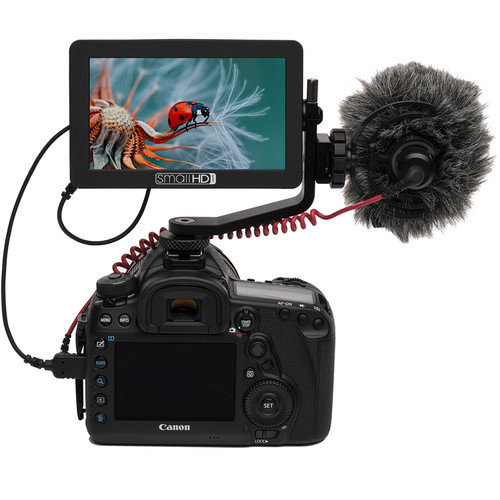

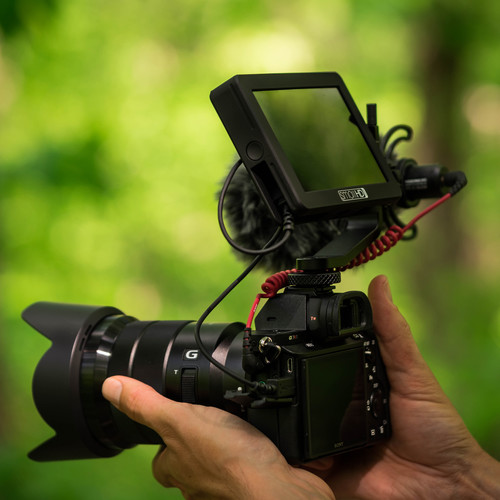

The FOCUS monitor secures to your camera using the included FOCUS Tilt Arm via shoe mount or 1/4"-20 thread. The Tilt Arm enables 180° of tilt for convenient monitoring at nearly any angle. A cold shoe on the Tilt Arm lets you secure equipment (like a microphone, LED light, or wireless receiver) that would otherwise be displaced from the camera's accessory shoe.
