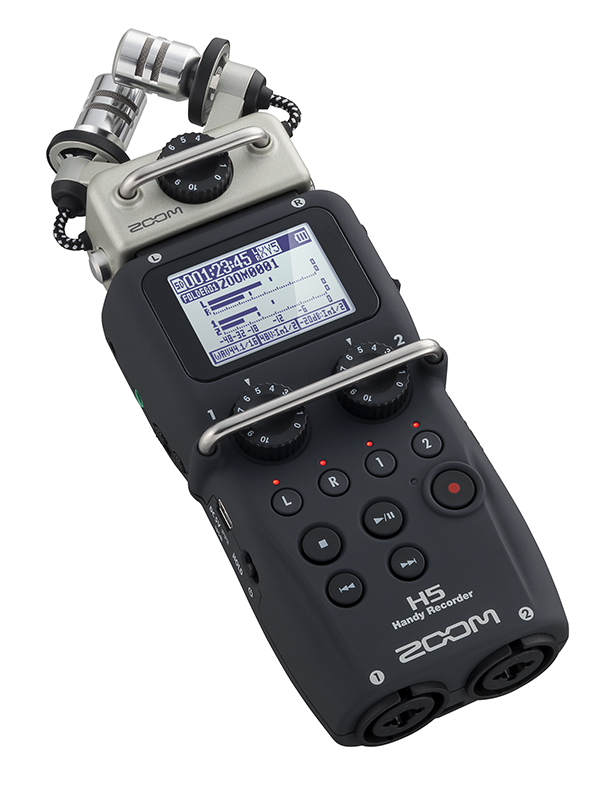

Zoom H5 Handy Recorder with Interchangeable Microphone System เครื่องบันทึกเสียงพกพาเปลี่ยนหัวไมค์ได้ พร้อมไมค์สเตอริโอ บันทึกพร้อมกัน 4 แชนแนล ลง SD Card ที่ความละเอียดสูงสุด 24 bit / 96 kHz ช่องหูฟังแยกอิสระ ฟังก์ชั่น Lo-Cut, Compressor, Limiter, Tuner, Metronome ในตัว ใช้เป็น Audio Interface กับคอมพิวเตอร์ได้ ใช้ถ่าน AA สองก้อน บันทึกต่อเนื่องได้นาน 15 ชั่วโมง





Product Highlights

• Modular Mic and Input System
• Includes XY Microphone Module
• Four Simultaneous Inputs
• Uses SD Memory Cards
• Compatible with H6 Mic Modules
• Optional Shotgun Mic and XLR/TRS Inputs
• Record up to 24-bit/96kHz Audio
• Doubles as USB Audio Interface
• Optional Hot Shoe Mount



Features:

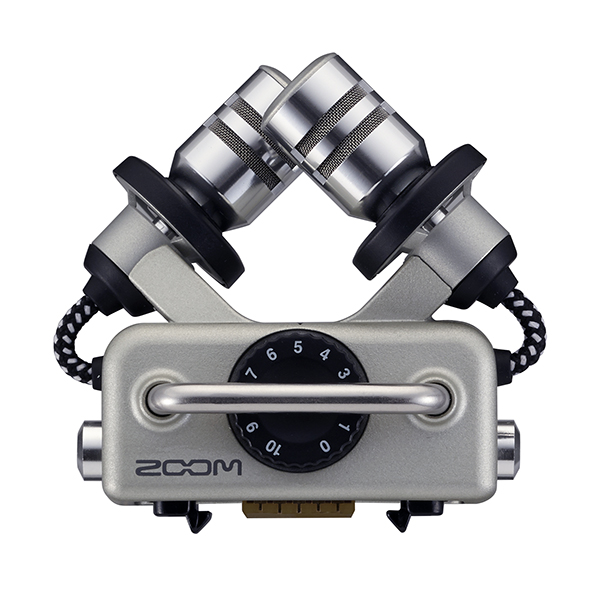

• Includes detachable X/Y capsule (XYH-5) with extended signal capacity and shockmounted microphones for reduced handling noise
• Compatible with Zoom H6 input capsules and optional capsules including the SGH-6 shotgun mic capsule and the EXH-6 dual XLR/TRS combo input capsule
• Four-track simultaneous recording
• Large backlit LCD display
• Records directly to SD and SDHC cards up to 32GB
• Up to 24-bit/96kHz audio in BWF-compliant WAV or a variety of MP3 formats
• Two mic/line inputs with XLR/TRS combo connectors, each with selectable phantom power and -20dB pad
• Analog-style gain controls for each input
• Protective "roll-bar" type covers prevent accidental movement of gain controls
• Plug-in power (2.5 volts)
• Built-in effects, including low-cut filtering, compression and limiting
• Chromatic tuner and metronome
• Auto-record, Pre-record and Backup-record functions mean that you'll never miss that perfect take
• MS decoding
• Multitrack to stereo internal mixdown
• Normalize, Divide and Trim editing
• Voice memo and up to 99 marks per recording
• A/B loop playback
• Variable playback speed and variable pitch without affecting playback speed
• Multichannel and stereo USB audio interface for PC/Mac/iPad with loop back function
• Mountable to DSLR or camcorder with optional HS-01 Hot Shoe Mount adapter
• Uses two standard AA alkaline or NiMH rechargeable batteries
• Over 15 hours of operation with alkaline batteries

Specifications

GENERAL

Recording media: SD card: 16MB to 2GB , SDHC card: 4GB to 32GB

Display: Backlit LCD (128 x 64 pixels)



INPUTS

INPUTS L/R [XYH-5 X/Y mic]:

Mic type:   Unidirectional

Sensitivity:   -45 dB, 1 kHz at 1 Pa

Input gain:   -∞ to 52 dB

Max sound pressure input: 140 dB SPL



MIC/LINE IN :

Connector:   1/8" stereo mini jack

Input gain:  - ∞ to 52 dB

Input impedance:  2 k Ω or more

Plug-in power:  2.5V supported

Backup recording: -12dB lower than set L/R input gain



INPUTS 1/2:

Connectors:    XLR / TRS combo jacks

    (XLR: Pin 2 hot / TRS: Tip hot)

Input gain (PAD OFF): -∞ to 55.0 dB

Input gain (PAD ON): -∞ to 35.0 dB

Input impedance:  1.8 k Ω or more

Max input level:  +22 dBu (PAD ON)

Phantom power:  +12V /+24V /+48V

Equivalent Input Noise (EIN): -120 dBu or less



OUTPUTS

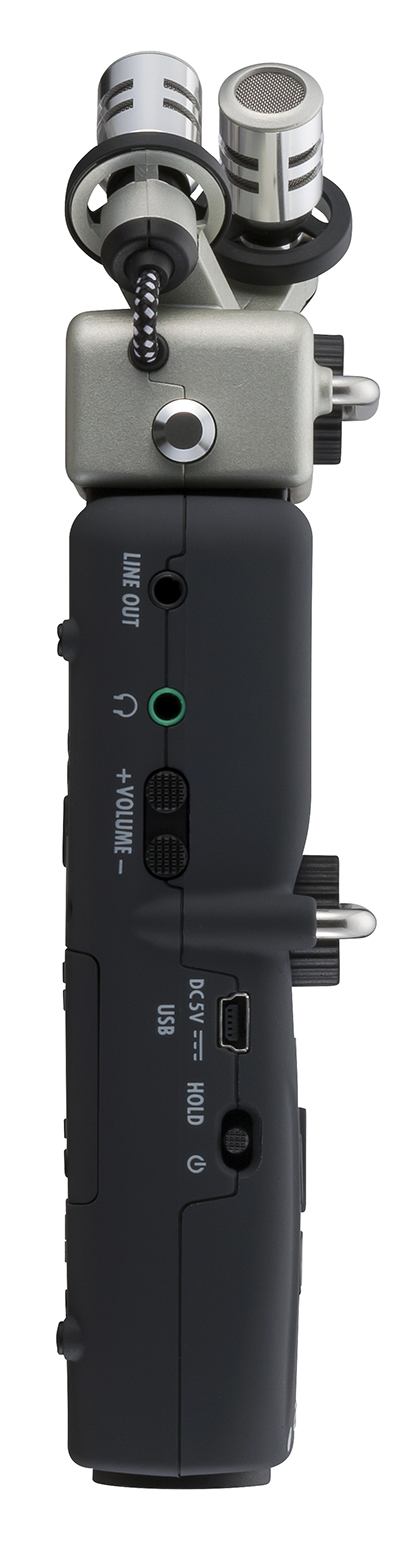

LINE OUT :

Connector:    1/8" stereo mini jack

Rated output level:   -10 dBm

Output load impedance: 10k Ω or more



PHONE OUT:

Connector:    1/8" stereo mini jack

Output Level:    20 W +20 W into 32 Ω load



Built-in speaker:

400mw 8 Ω mono



RECORDING FORMATS

STEREO MODE:

WAV (BWF-compliant)

Sampling frequency:   44.1/48/96 kHz

Bit rate:    16/24 (Stereo)

Maximum simultaneous recording tracks: 2



MP3

Sampling frequency:  44.1kHz

Bit rate: 48/56/64/80/96/112/32/160/192/224/256/320kbps



MULTITRACK MODE:

WAV (BWF-compliant)

Sampling frequency: 44.1/48 kHz

Bit rate: 16/24 (Mono/Stereo)

Maximum simultaneous recording tracks: 6 (L/R + INPUT 1/2 + L/R backup)



USB

Mass Storage Class operation:

Class: USB 2.0 High Speed



Audio Interface operation: Multitrack mode:

Class: USB 2.0 High Speed

Sampling frequency: 44.1/48kHz

Bit rate: 16/24 bit

Inputs / Outputs: 4 / 2



Audio Interface operation: Stereo mode:

Class: USB 2.0 Full Speed

Sampling frequency: 44.1/48kHz

Bit rate:  16 bit

Inputs / Outputs: 2 / 2



USB bus powered operation  possible

(iPad operation supported in Stereo mode only)



POWER REQUIREMENTS

AA size (LR6) battery x 2

AC adapter: AD-17 (DC5V/1A/USB-type) (optional)



USB bus power
