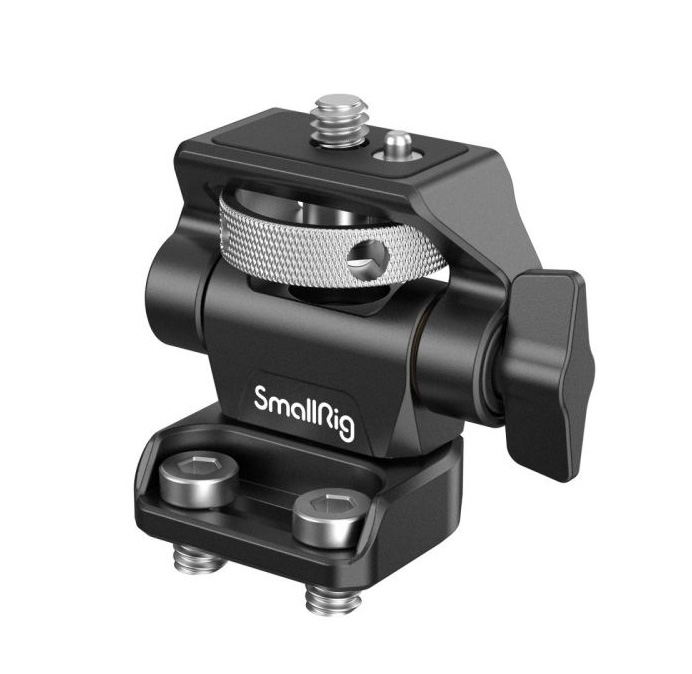

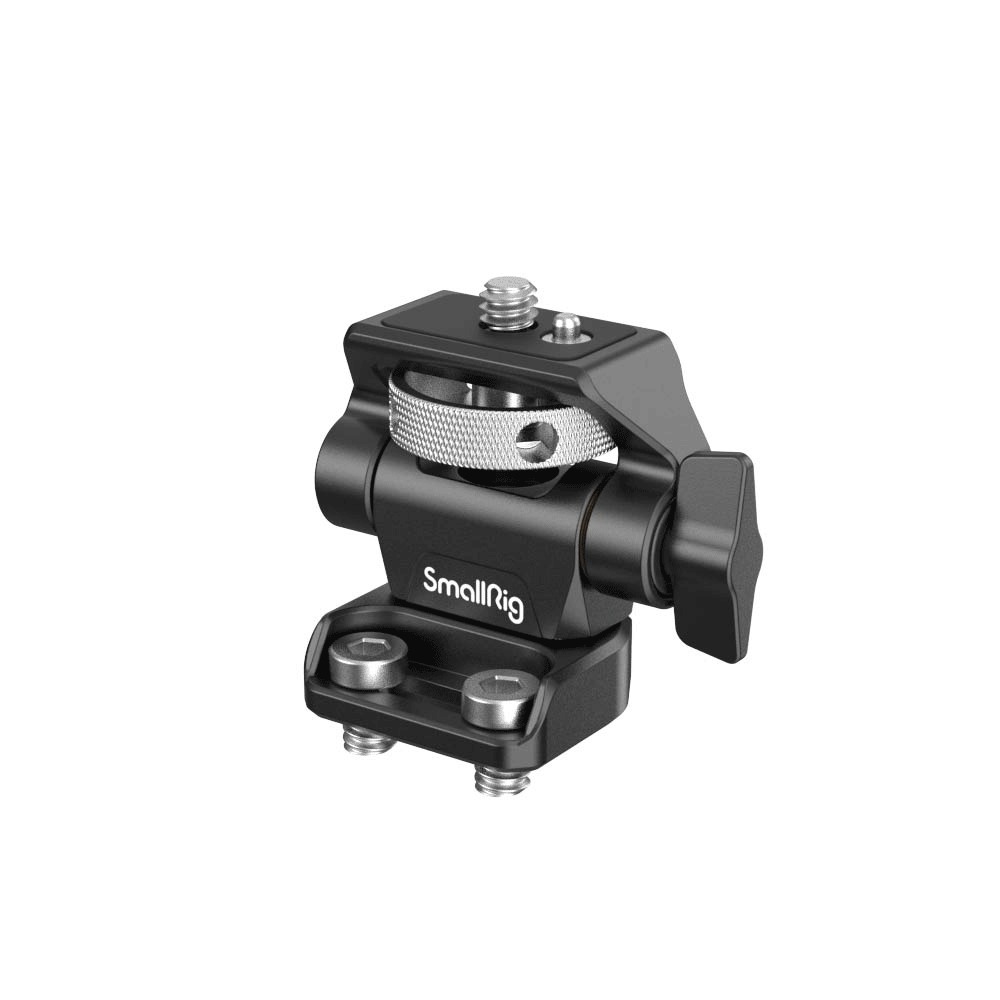

SmallRig Swivel and Tilt Adjustable Monitor Mount with Screws Mount 2904 / 2904B ที่ยึดจอมอนิเตอร์เข้ากับชุดริกด้วยน๊อต 1/4"

Key Features:

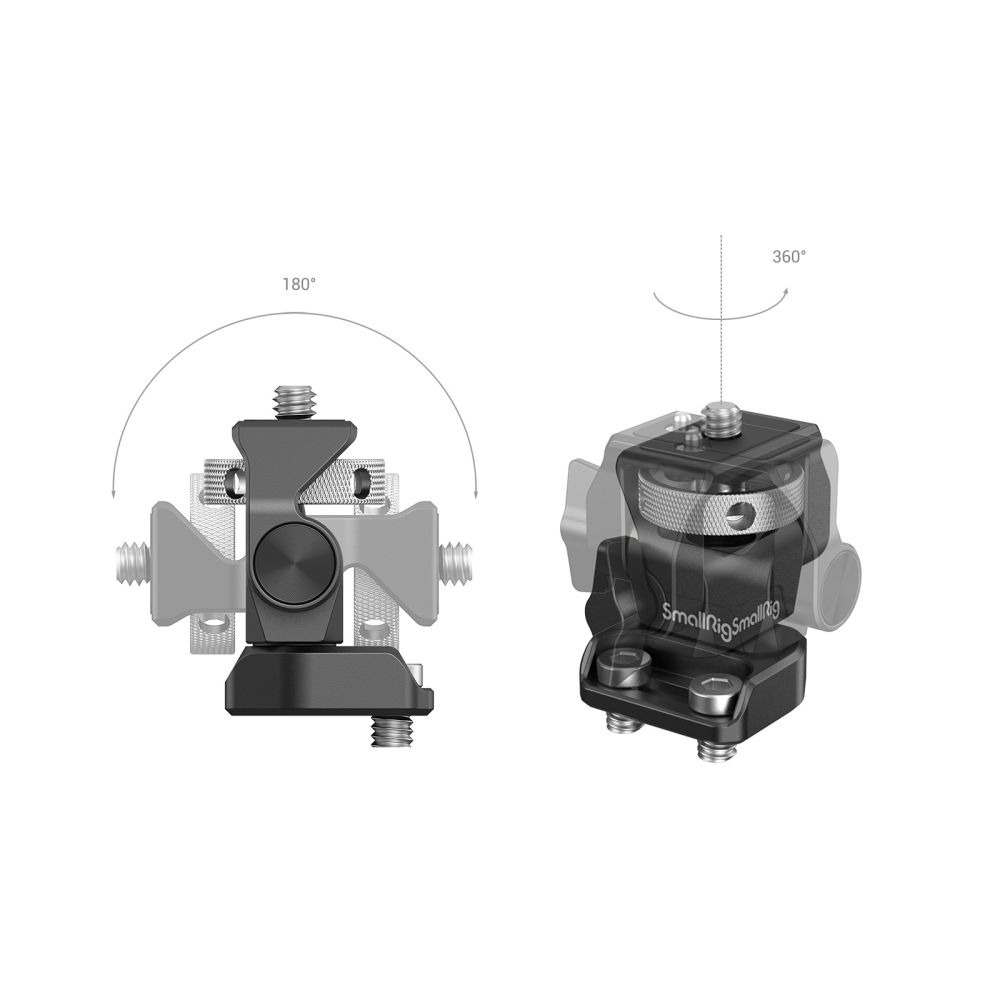

1. Tightness adjustable on each axis, swivels 360° and tilts 180°

2. Tested durability, with tilt load capacity decreased by no more than 20% after 10,000 tilts

3. Bouncy locating pins and silicone pad prevent twisting

4. Holes in thumbscrews for quick release ofthe mount

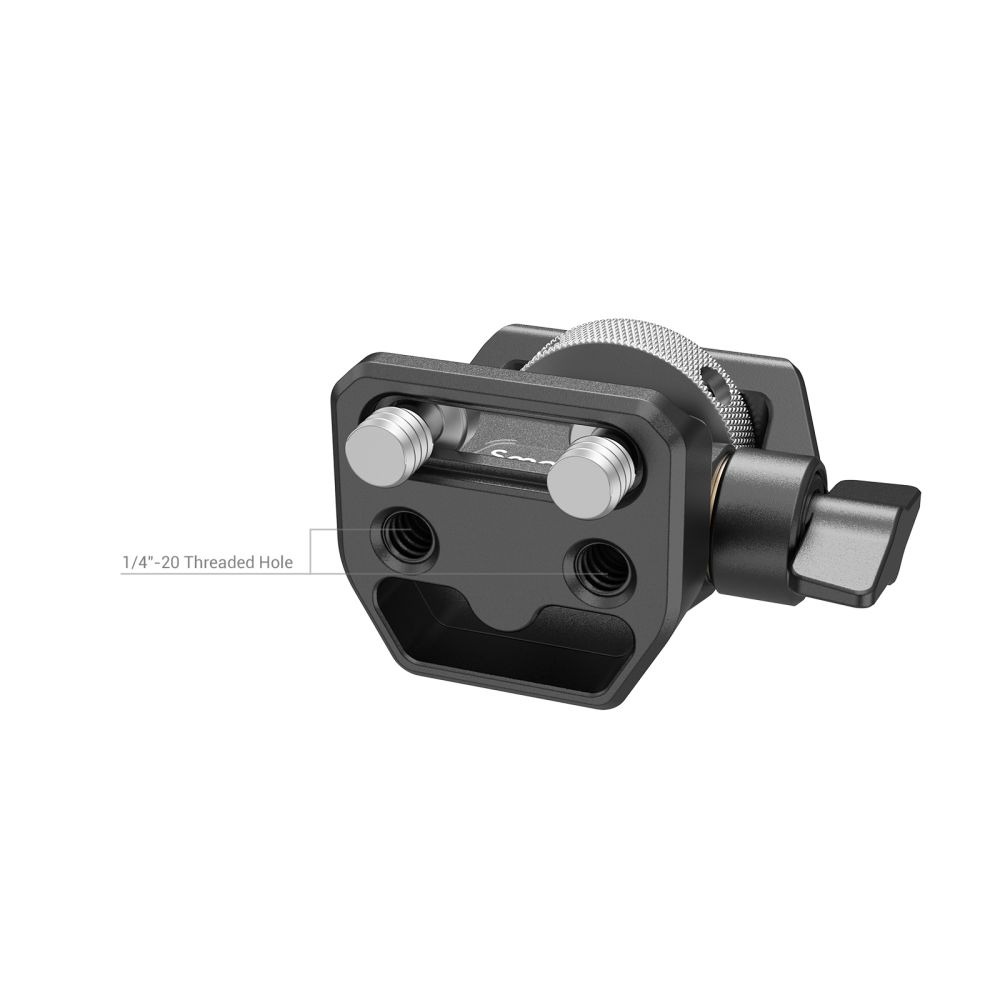

5. 1/4"-20 threaded holesat the bottom for magic arm

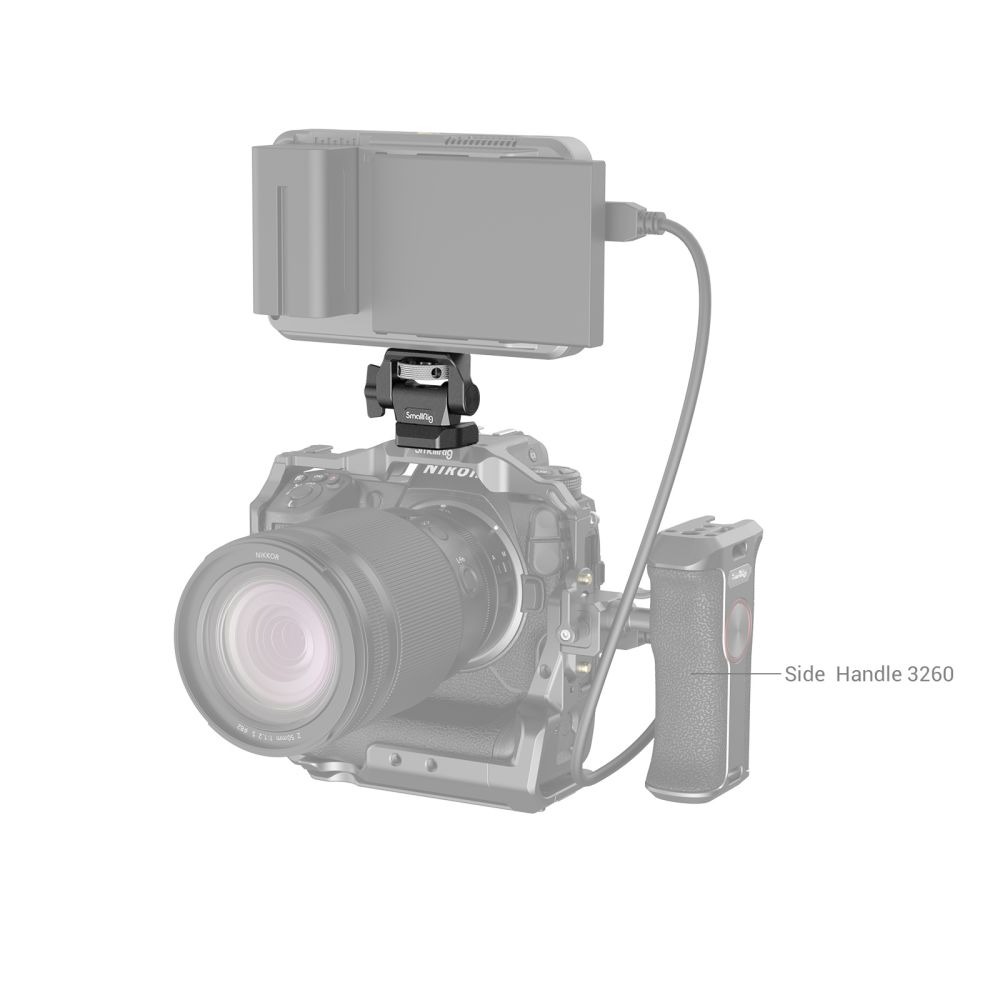

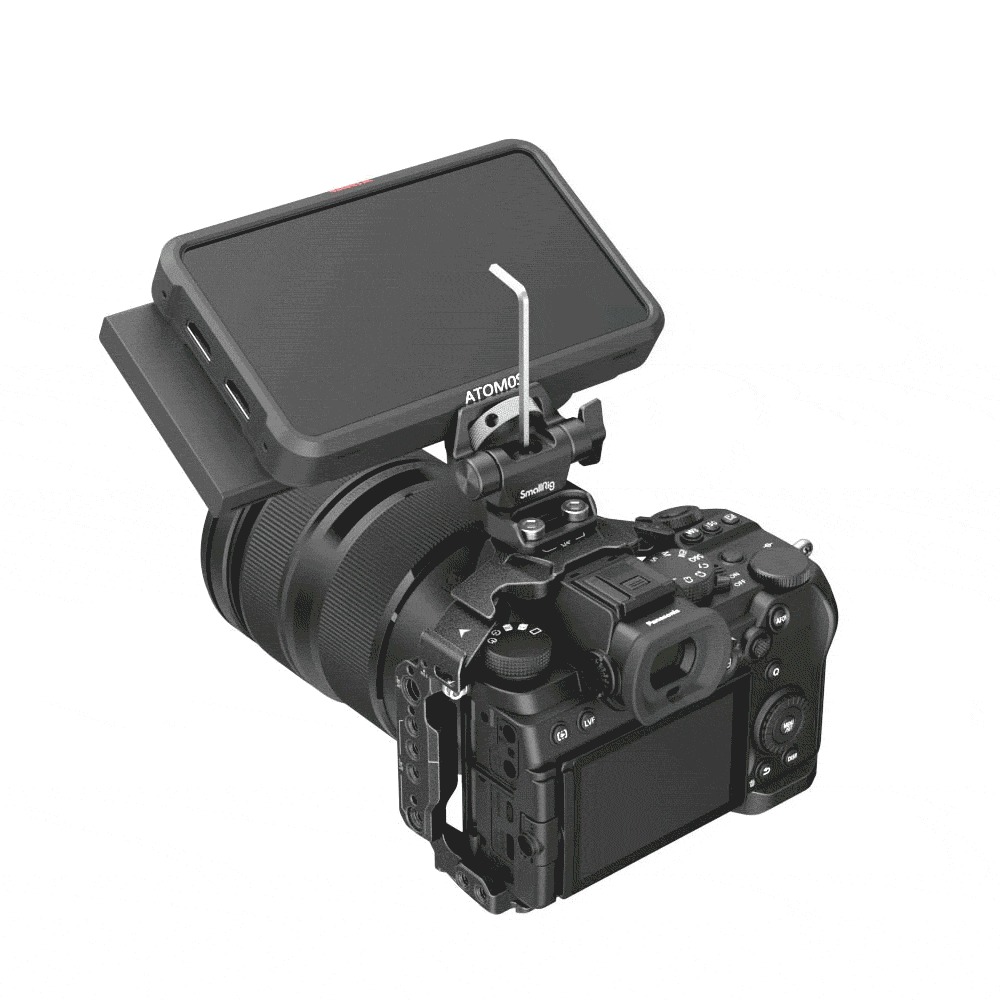

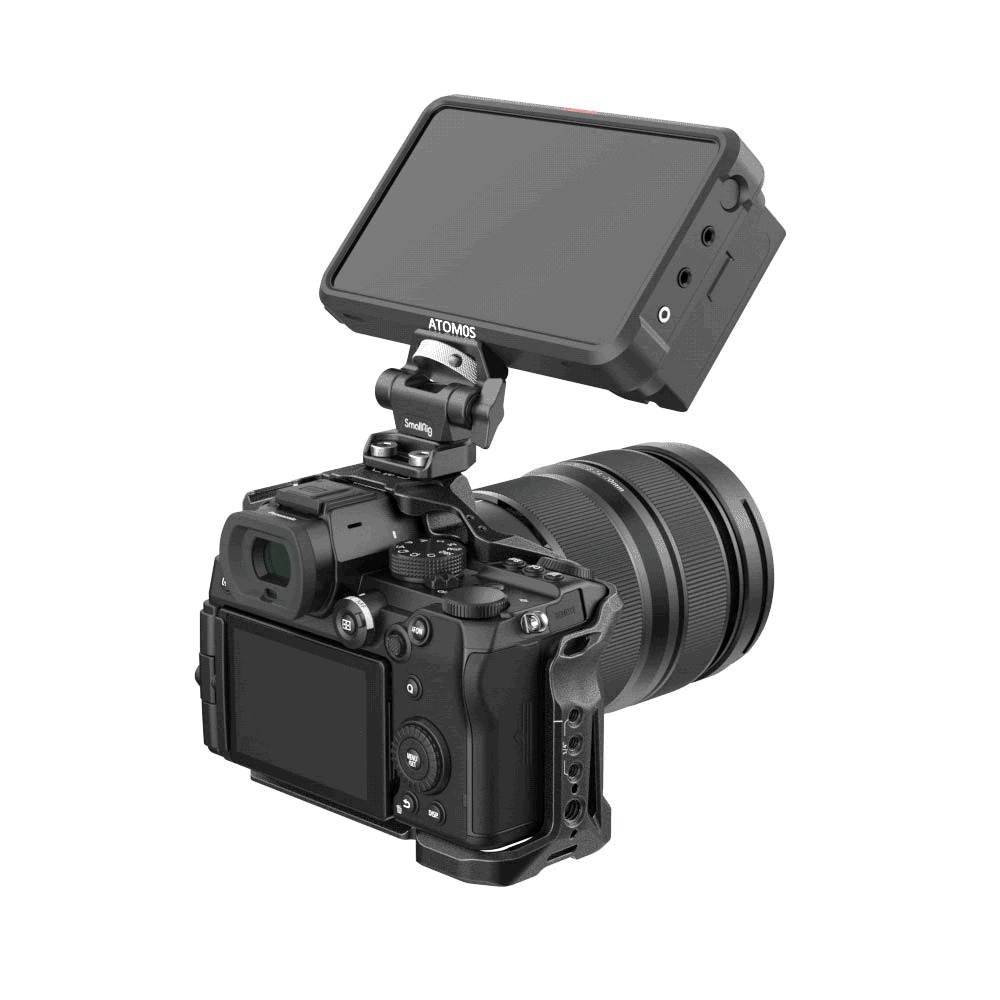

SmallRig Swivel and Tilt Adjustable Monitor Mount with 1/4"-20 Screws Mount 2904 is designed to hold your monitor for easy monitoring. It comes with bottom 1/4”-20 screws for accessories with 1/4"-20 threaded holes (hole centre distance≤18mm) and a top 1/4"-20 screw for monitor, microphone, light, etc. The mount can tilt 180° and and swivel 360°. Its tilt axis is quickly tightened via a knob to suit different weight and features tested durability, with tilt load capacity decreased by no more than 20% after 10,000 tilts, while its pan axis is 360° adjustable via an Allen wrench. Bouncy locating pins on the top help secure Ninja V/ V+; and 1/4"-20 threaded holes at the bottom allow attaching Magic Arm 2070, etc. The thumbscrews have holes for Allen wrench to facilitate assembly and disassembly.

Designer: Tracy Joy

Note:

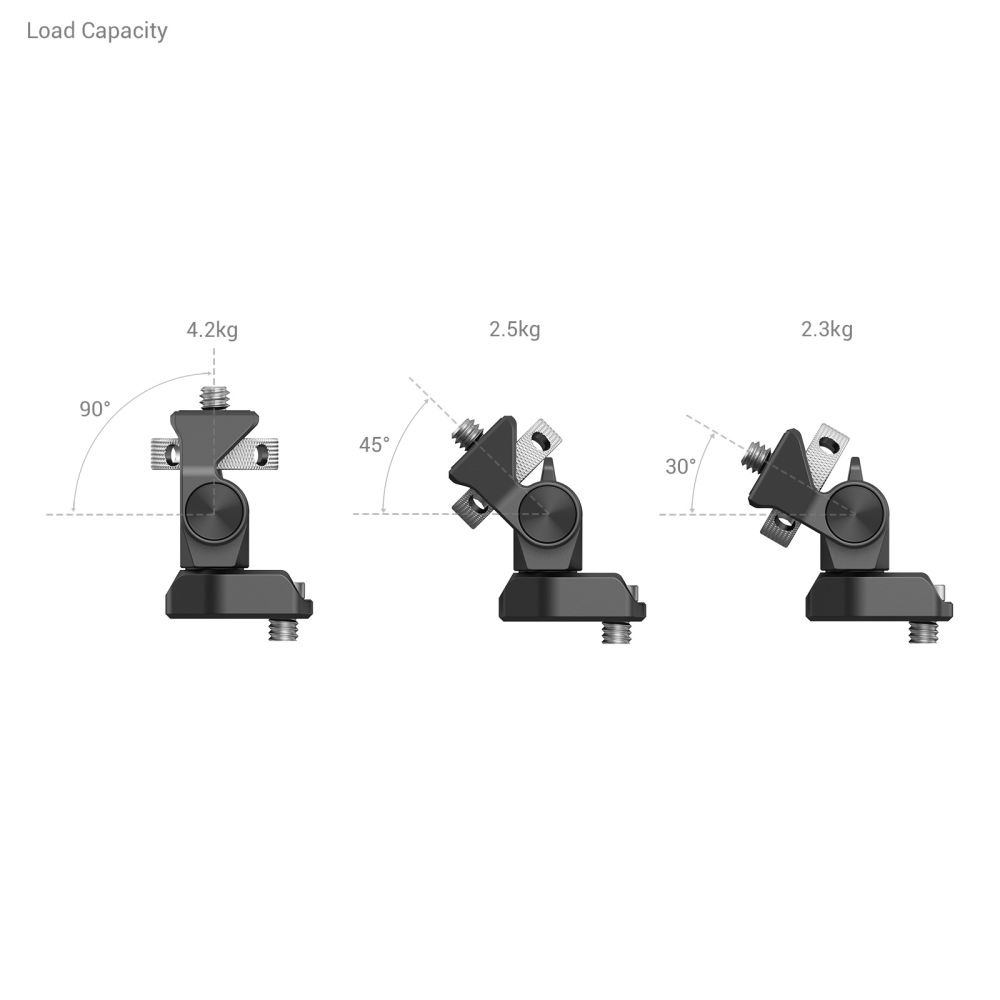

90° load capacity: ＜4.2kg; 45° tilt load capacity: ＜2.5kg; 30° tilt load capacity: ＜2.3kg

Compatibility:

5” and 7” monitor

Accessorieswith 1/4"-20 threaded holes (hole centre distance≤18mm) such as cage, top plate, handle, etc

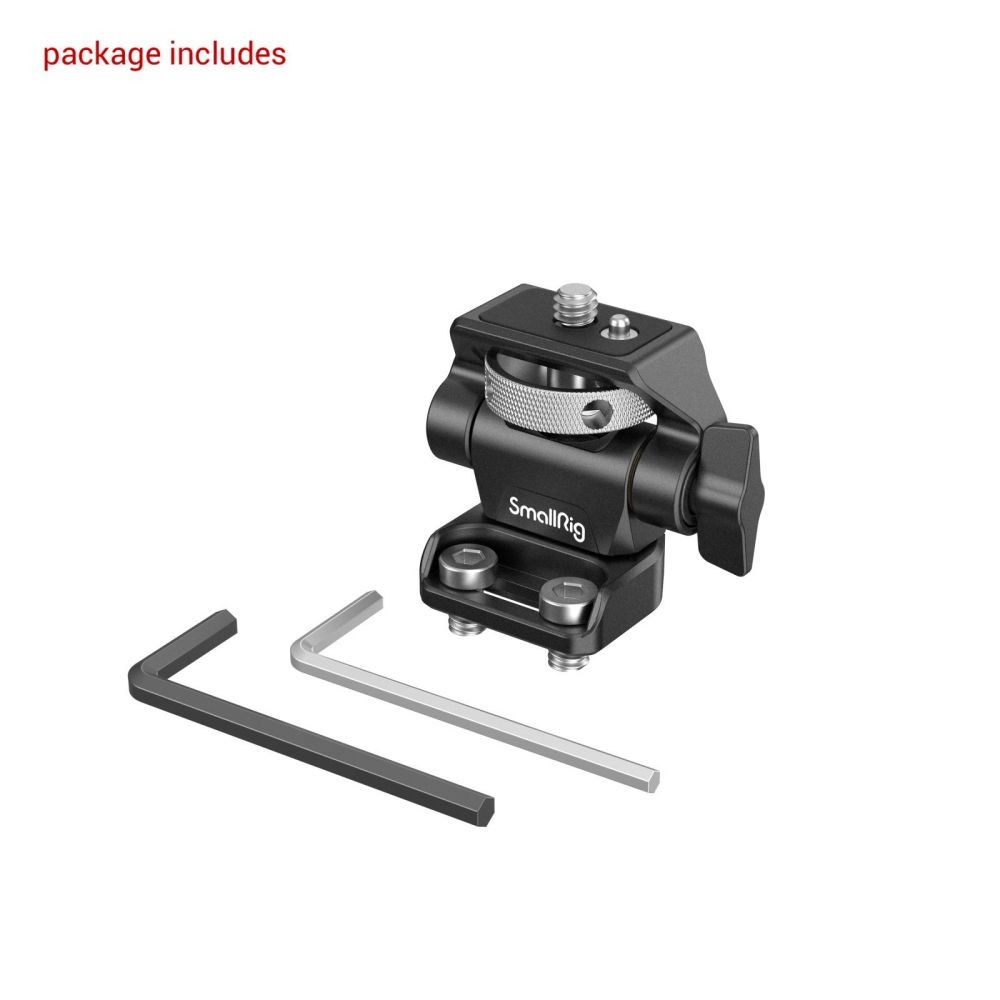

In the Box:

1 x Monitor Mount

2 x Allen Wrench

Product Parameters

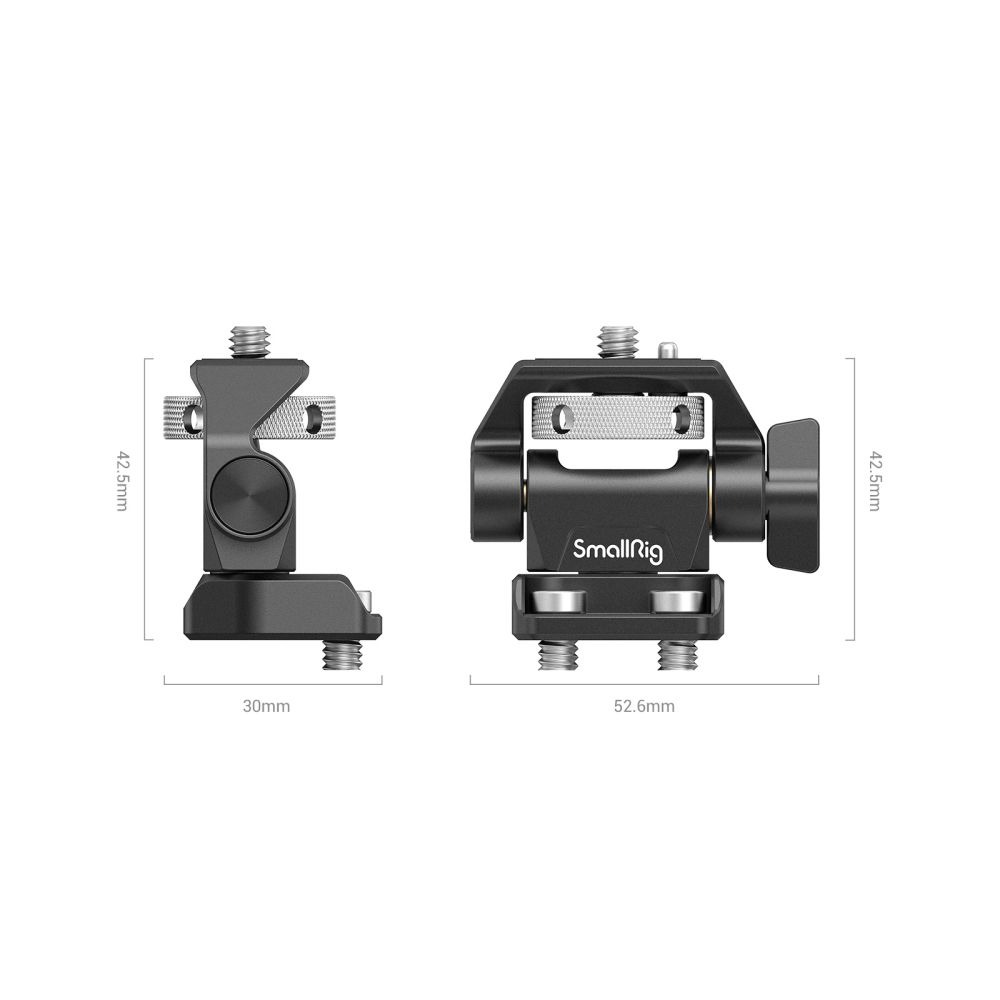

Product Dimensions: 42.5 x 52.6 x 30mm

Package Dimensions: 78 x 67 x 42mm

Net Weight: 81g±5g

Package Weight: 101g±5g

Material(s): Aluminum Alloy, Stainless Steel
