Sachtler Ace M GS Tripod ขาตั้งกล้องวิดีโอแบบสามท่อนพร้อมหัวโบวล์ 75 รองรับน้ำหนักกล้องได้ 4 กิโล ความสูง 57-173 ซม. ปรับความหนืดแพนทิลท์ได้ เคาท์เตอร์บาลานซ์ 5 ระดับ มาพร้อม ground spreader และกระเป๋าอย่างดี

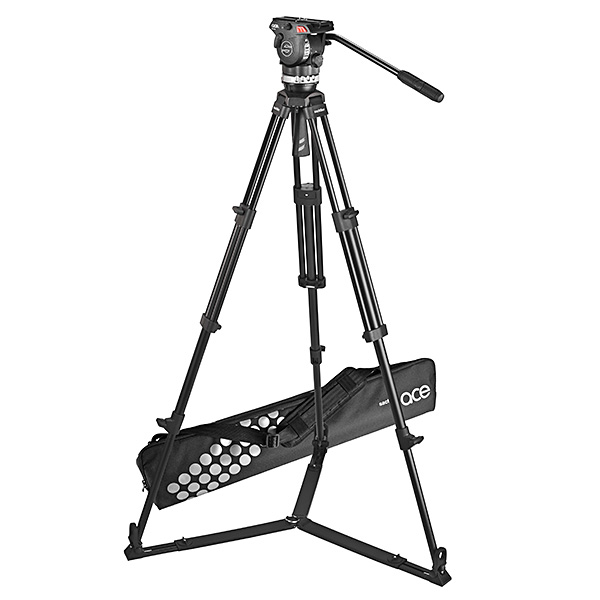

The Sachtler Ace Fluid Head with 2-Stage Aluminum Tripod & On-Ground Spreader is a full tripod system for videographers who use HDSLR cameras and smaller camcorders. Whether you're doing documentaries, ENG, weddings, corporate videos, or any other type of projects with a smaller camera, the Ace system matches your needs, enabling broadcast-style performance with lightweight components. With its light weight, compact size, and floor spreader, this system is perfect for projects that involve multiple setup changes on level surfaces.

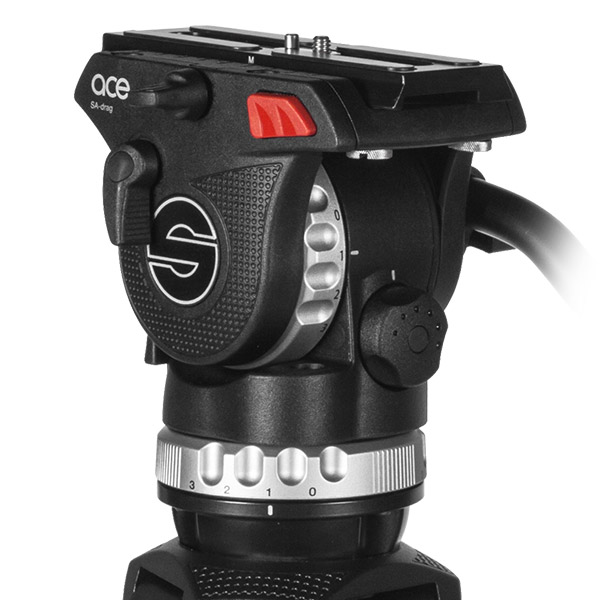

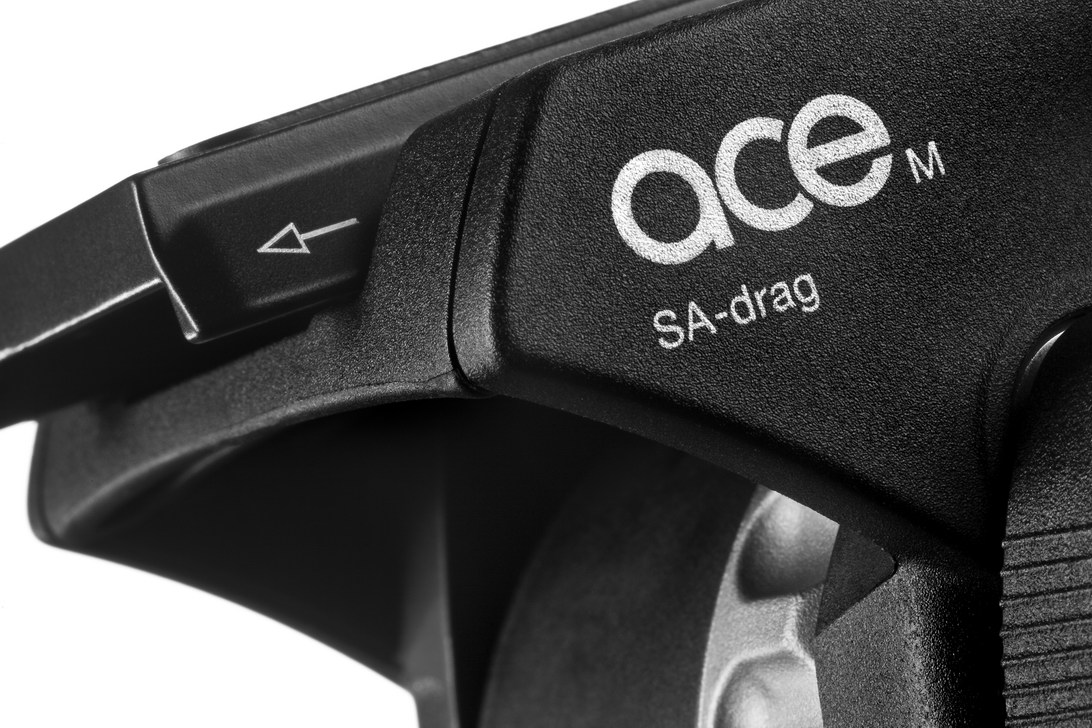

With a payload up to 8.8 lb, the Ace fluid head features five steps of counterbalance as well as a plate that features a 4.1" range of adjustment, so you can balance your small camera to a very precise degree. Designed by Sachtler engineers for the Ace head, the SA drag system enables smooth, precise panning and tilting via the head's pan bar, with three grades of drag in both the horizontal and vertical dimensions, plus the option of zero drag. The head's tilt range is +90° to -75°.

The tripod mounts the head via its 75mm bowl. With the Ace head attached, the two-stage aluminum model reaches a maximum height of 68.1" for a comfortable working height for almost all users. Also included is an on-ground spreader, model SP 75, which adds to the stability of the system when you're operating on a level surface. The spreader features telescopic arms to accommodate different tripod heights.



Specifications

General

Load Capacity: 8.8 lb (4 kg)

Maximum Height: 68.1" (173 cm)

Minimum Height: 22.4" (57 cm)

Folded Length: 34.3" (87 cm)

Leveling Bubble/Illuminated: Yes/no

Weight: 10.1 lb (4.6 kg)



Head

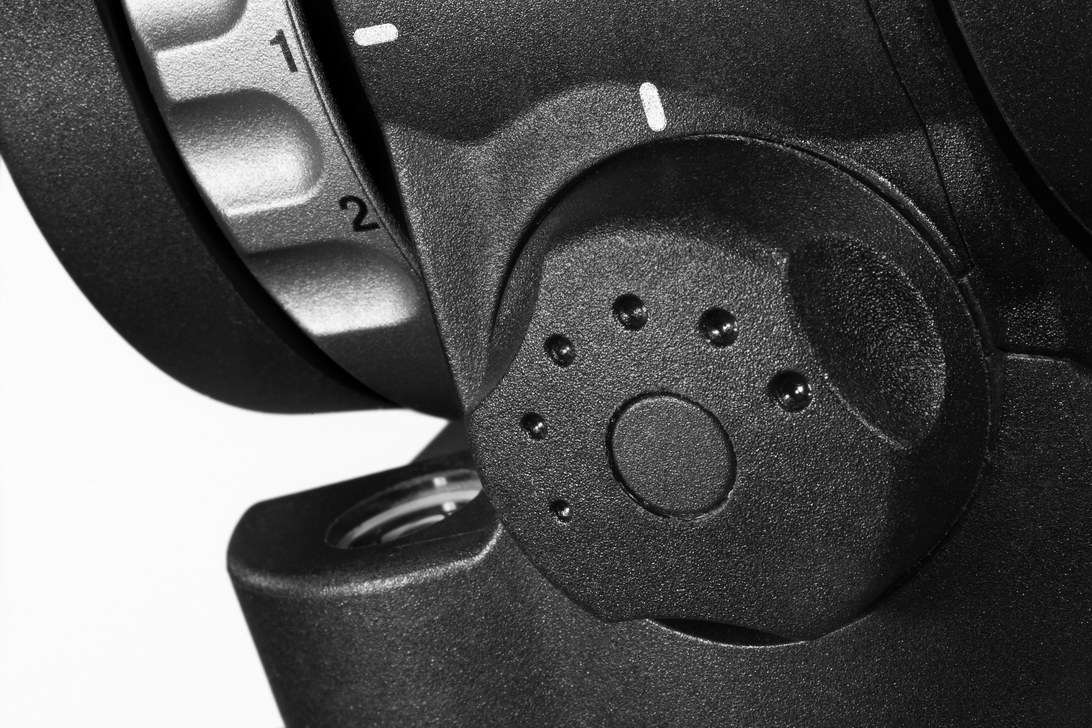

Counter Balance System: 5-step

Quick Release/Wedge Plate: Yes

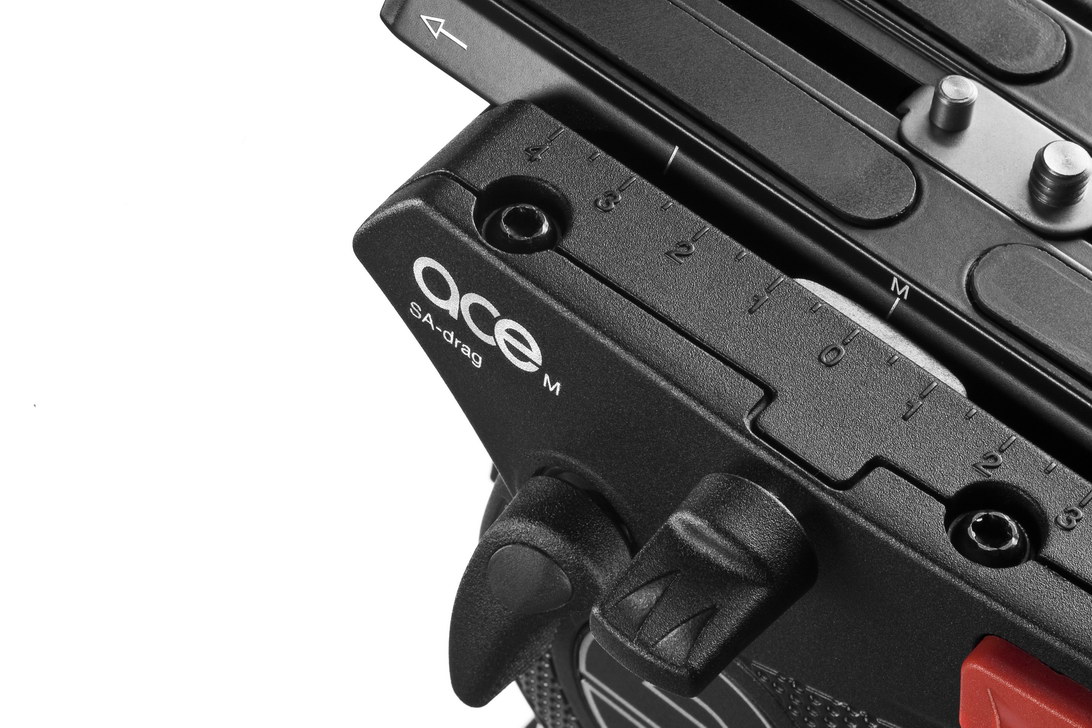

Balance Plate: 4.1" (10.4 cm) range of adjustment

Tilt Drag: 3 grades each in horizontal and vertical, plus zero

Tilt Range: +90° / -75°

Tilt Lock: Not specified by manufacturer

Spring Loaded Counter Balance: In 5 steps

Pan Range: Not specified by manufacturer

Pan Lock: Not specified by manufacturer



Legs

Material: Aluminum

Head Attachment Fitting: 75mm bowl

Leg Stages/Sections: 2/3

Leg Lock Type: Thumb screws

Independent Leg Spread: Yes, without spreader attached

Spiked/Retractable Feet: Yes/yes

Center Brace: No



Operating Temperature: -22 to 140°F (-30 to 60°C)
