Configuration

Head: SC-V15/100RP

Tripod: SC-ENG/AL(CF)100D

Pan Bar:SC-PB15

Ground Spreader:SC-FS100

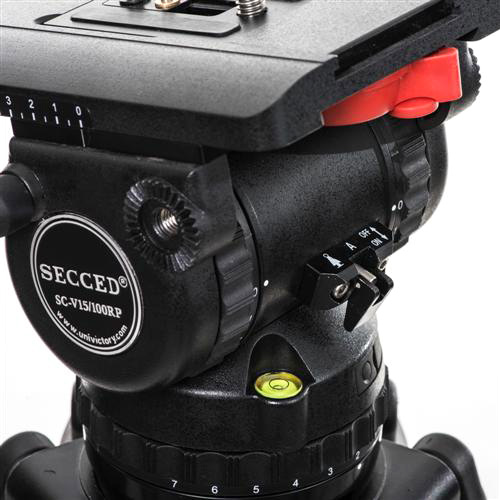

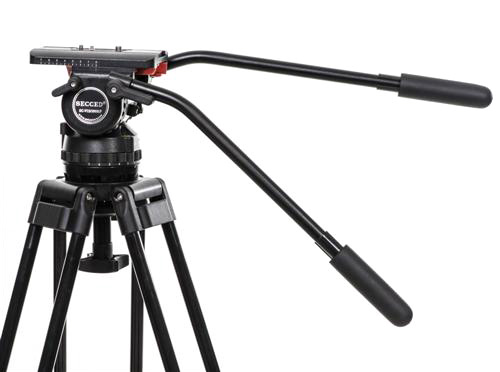

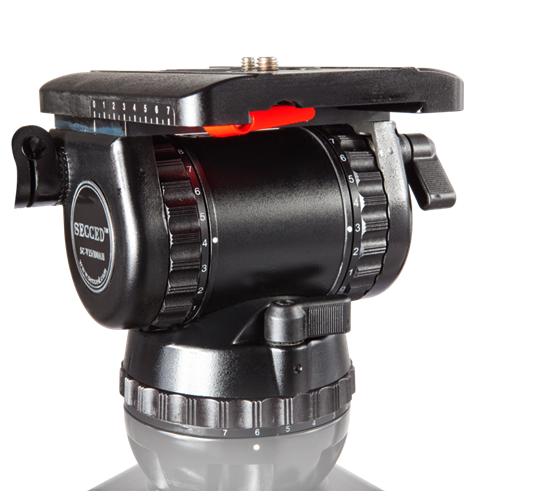

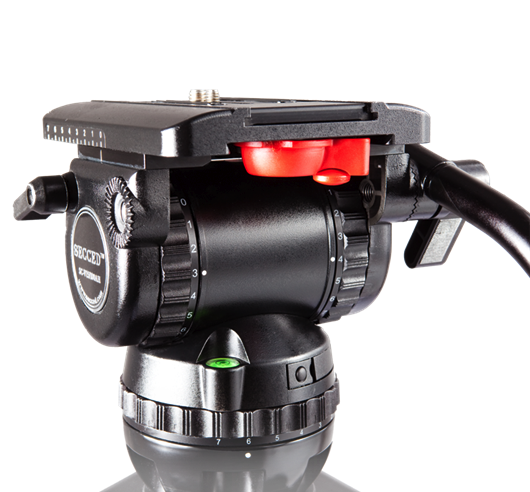

Head: SC-V15/100RP

It has 0-20kg payload, it is a perfect gear to support most ENG configuration cameras.

Improved drag system enhances smoothness of head movement, matching the quality of most famous brand. In addition, graded drag adjustment ensure fast change of tilt and pan drag.

Step-type counterbalance system help operator to balance the camera in a minute without changing over and over to look for the right amount of counterbalance.

Quick release mechanism ensures operator to quickly mount or dismount the camera on the head.

All main parts are made with high quality CNC machine. It enhances parts machining precision, ensures high reliability and improves fluid head performance substantially.

In order to enhance rigidity of plastic parts, high quality hard plastic is adopted to manufacture all plastic parts of fluid heads, especially those control elements (brake level, clamp level etc.), which results in considerable high durability of SECCED fluid heads.

100mm ball head, compatible with most 100mm tripod on the market.

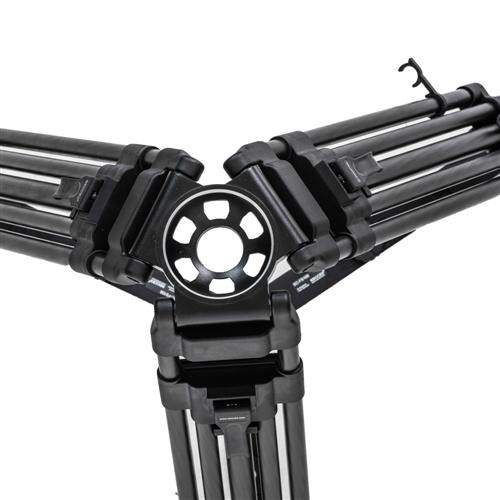

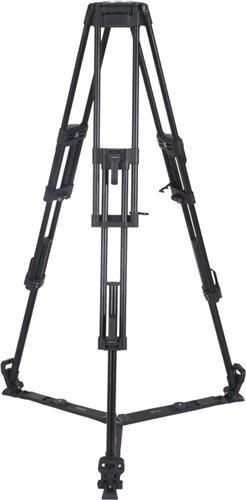

Tripod: SC-ENG/AL(CF)100D

Speed Locking system ensures quick setup of tripods and operators can get it ready for work within a minute.

Equipped with off ground and ground spreader.

All plastic parts adopt the imported material, enhance the quality of spare parts and ensure high rigidity of tripods.



Reach Plus 3 Kit:



Weight: 8.96kg

Max Paylaod: 20.8kg

Height Range: 75-172mm

Bowl Diameter: 100mm

Transport Length: 90cm



Head:



Weight: 3.8 kg

Counterbalance: 0-7 steps

Sliding range-plate: 70mm

Grades of tilt drag: 0-7

Grades of pan drag: 0-7

Tilt range: -75°/+90°

Tripod fitting: 100mm



 Payload



C.O.G (mm)    Min Payload (kg)   Max Payload (kg)

75                       0.00                      20.87

100                     0.00                      17.22

125                     0.00                      15.40

150                     0.00                      13.62





Tripod:



Weight (With Ground Spreader): 5kg

Max. Payload: 35kg

Height Range (With Ground Spreader): 48-155cm

Height Range (With Off Ground Spreader): 55-151cm

Bowl Size: 100mm

Transport Length: 75cm

Extension: Double

Material: Aluminum
